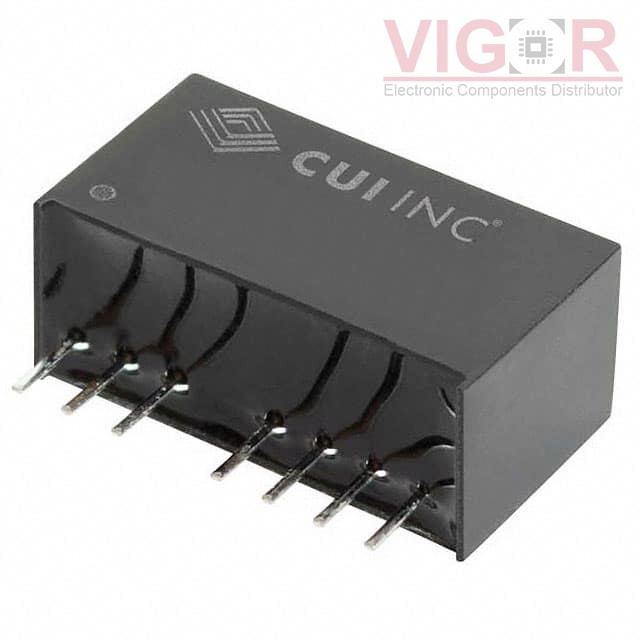

PQMC3-D12-S24-S

Part No :: PQMC3-D12-S24-S

Manufacturer: CUI Inc.

VIGOR # :: 4162881

Description: DC DC CONVERTER 24V 3W

Catalog: DC DC Converters

DataSheet: PQMC3-D12-S24-S PDF

Country of origin: -

Date code: -

PQMC3-D12-S24-S Specifications

Type	Description
Series:	PQMC3-S (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	125mA
Power (Watts):	3 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	EN
Standard Number:	55024; 55032 Class A

Alternative Products

Part Number	Manufacturer & Description	Compare
EDL02-24S24W Match 70%	P-Duke Technology, Inc. DC DC CONVERTER 24V 2W	PQMC3-D12-S24-S vs EDL02-24S24W
HEA2-12S24 Match 70%	Daburn DC DC CONVERTER 24V 2W	PQMC3-D12-S24-S vs HEA2-12S24
EDL02-12S24 Match 70%	P-Duke Technology, Inc. DC DC CONVERTER 24V 2W	PQMC3-D12-S24-S vs EDL02-12S24
EDL03-12S24W Match 99%	P-Duke Technology, Inc. ISOLATED /3W /VOUT:24	PQMC3-D12-S24-S vs EDL03-12S24W
EDL03-24S24W Match 99%	P-Duke Technology, Inc. DC DC CONVERTER 24V 3W	PQMC3-D12-S24-S vs EDL03-24S24W
