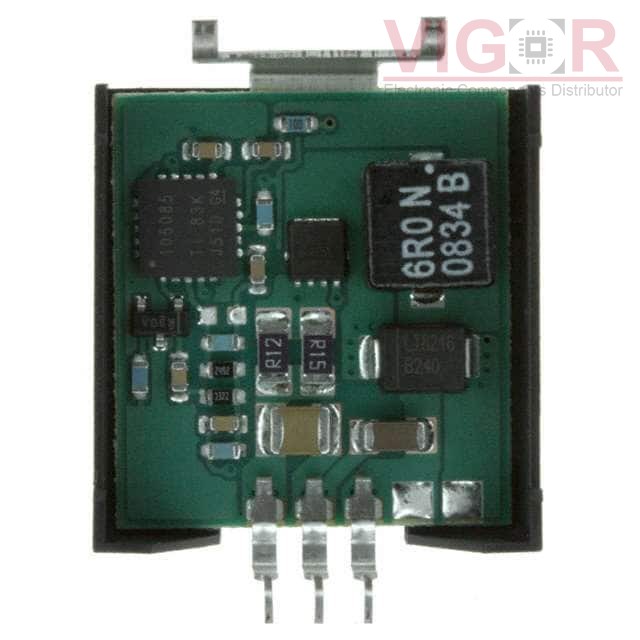

Part No :

PT78HT253S

Manufacturer
Texas Instruments
VIGOR # :

4989646

Description
DC DC CONVERTER 5.25V
Catalog
DC DC Converters
DataSheet
PT78HT253S PDF
Country of origin
-
Date code
-
ads
Type Description
Series:PT78HT200
Package:Tray
Part Status:Obsolete
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):9V
Voltage - Input (Max):28V
Voltage - Output 1:5.25V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):2A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OTP, SCP
Operating Temperature:-40°C ~ 85°C
Efficiency:85%
Mounting Type:Surface Mount
Package / Case:3-SMD Module
Size / Dimension:0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
