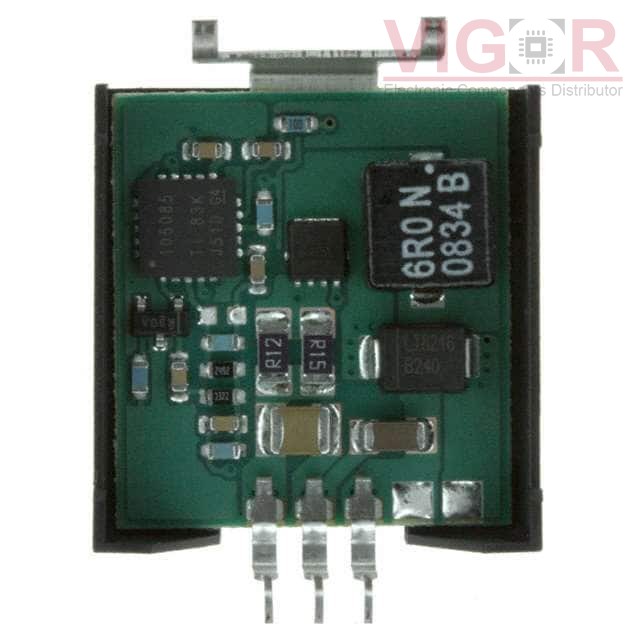

PT78HT205ST

Part No :: PT78HT205ST

Manufacturer: Texas Instruments

VIGOR # :: 5004245

Description: DC DC CONVERTER 5V

Catalog: DC DC Converters

DataSheet: PT78HT205ST PDF

Country of origin: -

Date code: -

PT78HT205ST Specifications

Type	Description
Series:	PT78HT200
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	28V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Surface Mount
Package / Case:	3-SMD Module
Size / Dimension:	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-78T5.0-1.0/AC-TRAY Match 56%	RECOM Power DC DC CONVERTER 5V 5W	PT78HT205ST vs R-78T5.0-1.0/AC-TRAY
R-78T5.0-1.0/AC-R Match 56%	RECOM Power DC DC CONVERTER 5V 5W	PT78HT205ST vs R-78T5.0-1.0/AC-R
PT78HT253S Match 93%	Texas Instruments DC DC CONVERTER 5.25V	PT78HT205ST vs PT78HT253S
PT78HT205S Match 100%	Texas Instruments DC DC CONVERTER 5V	PT78HT205ST vs PT78HT205S
78HT205SC Match 100%	Texas Instruments DC DC CONVERTER 5V	PT78HT205ST vs 78HT205SC
78ST105SC Match 82%	Texas Instruments DC DC CONVERTER 5V	PT78HT205ST vs 78ST105SC
