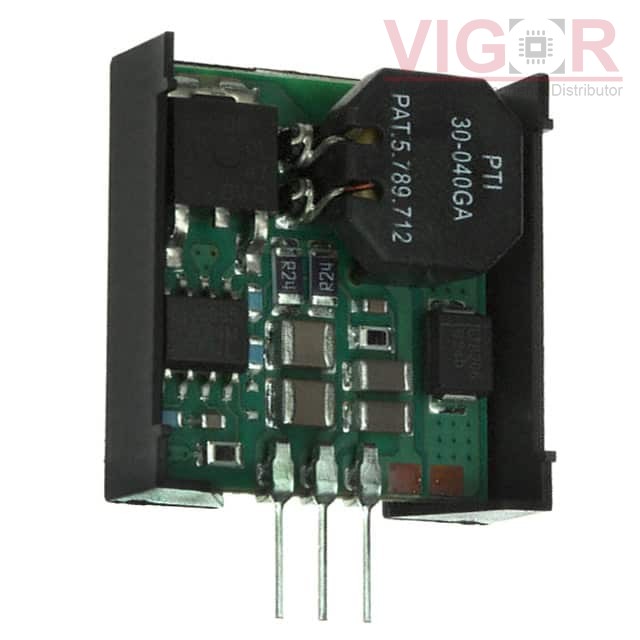

PT78NR109V

Part No :: PT78NR109V

Manufacturer: Texas Instruments

VIGOR # :: 4990292

Description: DC DC CONVERTER -9V

Catalog: DC DC Converters

DataSheet: PT78NR109V PDF

Country of origin: -

Date code: -

PT78NR109V Specifications

Type	Description
Series:	PT78NR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	21V
Voltage - Output 1:	-9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	550mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LCN78_03-0.5 Match 86%	TE Connectivity AMP Connectors DC-DC POL	PT78NR109V vs LCN78_03-0.5
LC78_05-0.5 Match 86%	TE Connectivity AMP Connectors DC-DC POL	PT78NR109V vs LC78_05-0.5
LCB78_03-0.5 Match 86%	TE Connectivity AMP Connectors DC-DC POL	PT78NR109V vs LCB78_03-0.5
K7803-500R3 Match 86%	Mornsun DC DC CONVERTER 3.3V 1.7W	PT78NR109V vs K7803-500R3
AMSRB-783.3Z Match 86%	DComponents DC DC CONVERTER 3.3V 1.7W	PT78NR109V vs AMSRB-783.3Z
AMSR-781.5Z Match 86%	DComponents DC DC CONVERTER 1.5V 750MW	PT78NR109V vs AMSR-781.5Z
