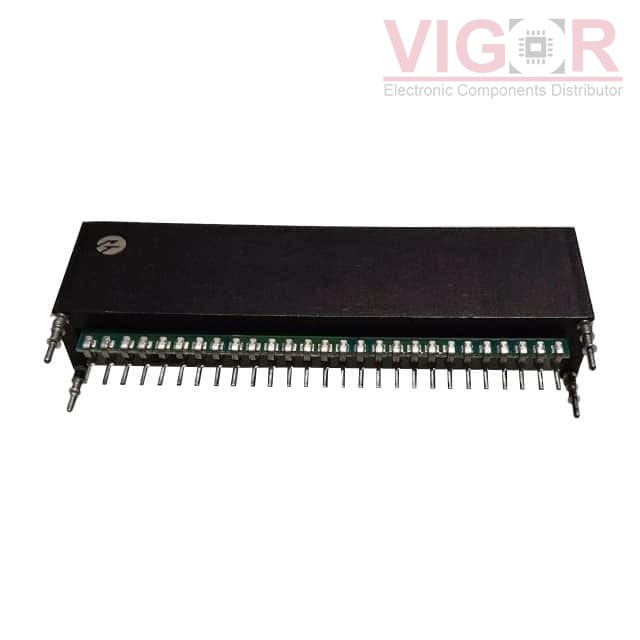

PT7706A

Part No :: PT7706A

Manufacturer: Texas Instruments

VIGOR # :: 4992797

Description: DC DC CONVERTER 1.3-2.05V

Catalog: DC DC Converters

DataSheet: PT7706A PDF

Country of origin: -

Date code: -

PT7706A Specifications

Type	Description
Series:	PT7700
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	3.6V
Voltage - Output 1:	1.3 ~ 2.05V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	18A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	0°C ~ 85°C
Efficiency:	79%
Mounting Type:	Through Hole, Horizontal
Package / Case:	27-SIP Module, Horizontal
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7712A Match 85%	VIGOR SWITCHING REGULATOR	PT7706A vs PT7712A
PT7749A Match 100%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7706A vs PT7749A
PT7716A Match 85%	Texas Instruments DC DC CONVERTER 1.075-1.85V	PT7706A vs PT7716A
PT7744A Match 85%	Texas Instruments DC DC CONVERTER 3.1-3.6V	PT7706A vs PT7744A

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1375

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT7706A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
