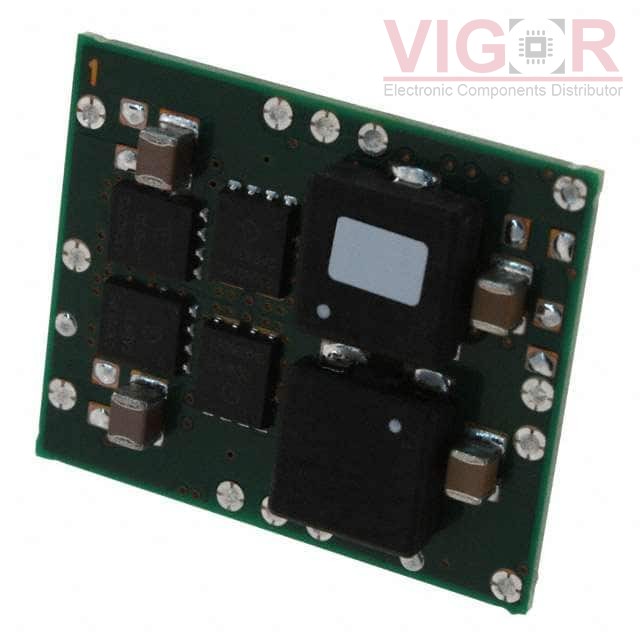

PTH12030LAST

Part No :: PTH12030LAST

Manufacturer: Texas Instruments

VIGOR # :: 5013223

Description: DC DC CONVERTER 0.8-1.8V

Catalog: DC DC Converters

DataSheet: PTH12030LAST PDF

Country of origin: -

Date code: -

PTH12030LAST Specifications

Type	Description
Series:	PTH12030
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.2V
Voltage - Input (Max):	13.8V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	26A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Surface Mount
Package / Case:	13-SMD Module
Size / Dimension:	1.37" L x 1.12" W x 0.38" H (34.8mm x 28.4mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12030WAZ Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 143W	PTH12030LAST vs PTH12030WAZ
PTH12030WAS Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 143W	PTH12030LAST vs PTH12030WAS
PTH12030WAZT Match 100%	VIGOR PTH12030W 1.2 TO 5.5 V 26-A, 12-	PTH12030LAST vs PTH12030WAZT
PTH12030LAZT Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V 26A	PTH12030LAST vs PTH12030LAZT
PTH12030LAZ Match 100%	VIGOR PTH12030L 0.8 TO 1.8 V 26-A, 12-	PTH12030LAST vs PTH12030LAZ
PTH12030LAS Match 100%	VIGOR PTH12030L 0.8 TO 1.8 V 26-A, 12-	PTH12030LAST vs PTH12030LAS
