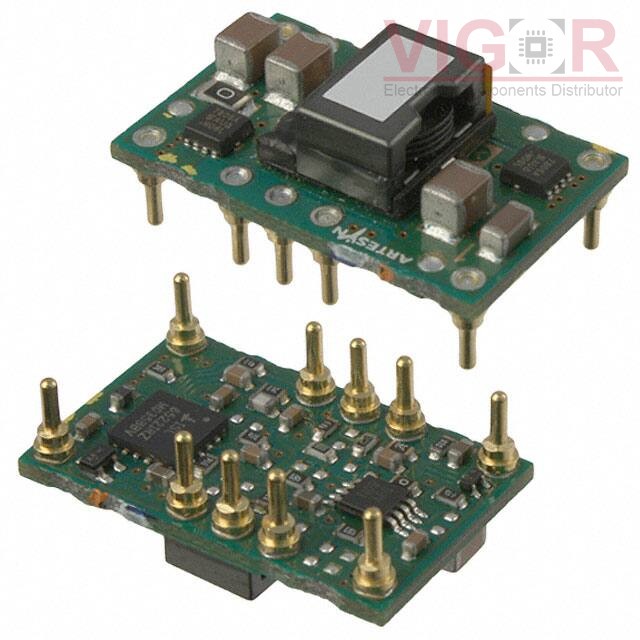

PTH05060YAD

Part No :: PTH05060YAD

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 5025100

Description: DC DC CONVERTER 0.55-1.8V 18W

Catalog: DC DC Converters

DataSheet: PTH05060YAD PDF

Country of origin: -

Date code: -

PTH05060YAD Specifications

Type	Description
Series:	PTHxx060Y (18W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.55 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	18 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	10-DIP Module
Size / Dimension:	0.10" L x 0.62" W x 0.35" H (2.5mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05060YAH Match 100%	VIGOR 10-AMP NON-ISOLATED DDR/QDR MEMO	PTH05060YAD vs PTH05060YAH
PTH05060WAD Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 10A	PTH05060YAD vs PTH05060WAD
PTH05060WAH Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 10A	PTH05060YAD vs PTH05060WAH
MPDTH05060YAH Match 100%	Murata Power Solutions DC DC CONVERTER 0.55-1.8V 18W	PTH05060YAD vs MPDTH05060YAH
MPDTH05060WAH Match 57%	Murata Power Solutions DC DC CONVERTER 0.8-3.6V 36W	PTH05060YAD vs MPDTH05060WAH
PMF5318TP Match 57%	Flex Power Modules DC DC CONVERTER 0.8-3.6V 36W	PTH05060YAD vs PMF5318TP
