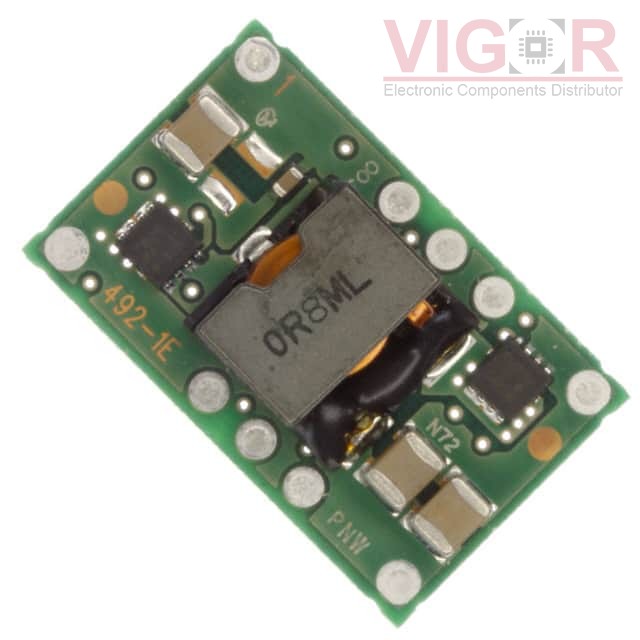

MPDTH05060WAH

Part No :: MPDTH05060WAH

Manufacturer: Murata Power Solutions

VIGOR # :: 5030206

Description: DC DC CONVERTER 0.8-3.6V 36W

Catalog: DC DC Converters

DataSheet: MPDTH05060WAH PDF

Country of origin: -

Date code: -

MPDTH05060WAH Specifications

Type	Description
Series:	MPD
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	36 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	10-DIP Module
Size / Dimension:	0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05060YAH Match 100%	VIGOR 10-AMP NON-ISOLATED DDR/QDR MEMO	MPDTH05060WAH vs PTH05060YAH
PTH05060WAD Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 10A	MPDTH05060WAH vs PTH05060WAD
PTH05060WAH Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 10A	MPDTH05060WAH vs PTH05060WAH
MPDTH05060YAH Match 57%	Murata Power Solutions DC DC CONVERTER 0.55-1.8V 18W	MPDTH05060WAH vs MPDTH05060YAH
PTH05060YAD Match 57%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.55-1.8V 18W	MPDTH05060WAH vs PTH05060YAD
PMF5318TP Match 100%	Flex Power Modules DC DC CONVERTER 0.8-3.6V 36W	MPDTH05060WAH vs PMF5318TP
