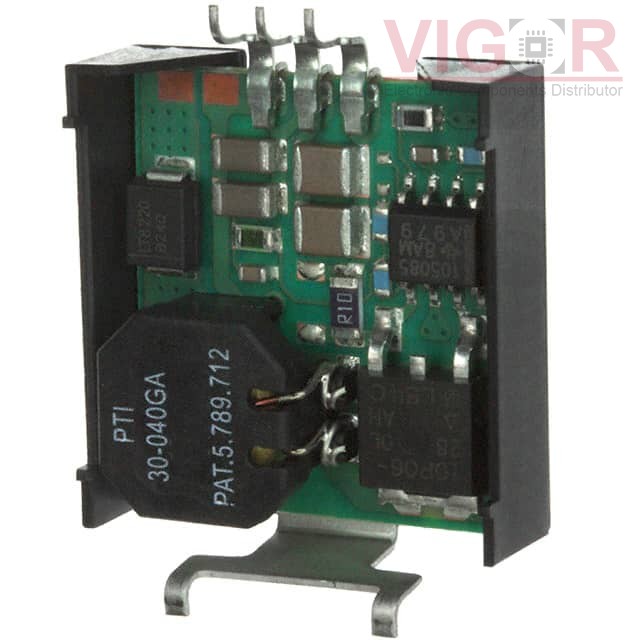

PT78ST109S

Part No :: PT78ST109S

Manufacturer: Texas Instruments

VIGOR # :: 5029068

Description: DC DC CONVERTER 9V

Catalog: DC DC Converters

DataSheet: PT78ST109S PDF

Country of origin: -

Date code: -

PT78ST109S Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	13V
Voltage - Input (Max):	38V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Surface Mount
Package / Case:	3-SMD Module
Size / Dimension:	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT78ST108S Match 84%	Texas Instruments DC DC CONVERTER 8V	PT78ST109S vs PT78ST108S
PT78ST109ST Match 100%	Texas Instruments DC DC CONVERTER 9V	PT78ST109S vs PT78ST109ST
PT78ST174ST Match 68%	Texas Instruments DC DC CONVERTER 7.15V	PT78ST109S vs PT78ST174ST
PT78ST107S Match 66%	Texas Instruments DC DC CONVERTER 7V	PT78ST109S vs PT78ST107S
PT78ST108ST Match 84%	Texas Instruments DC DC CONVERTER 8V	PT78ST109S vs PT78ST108ST
PT78ST174S Match 68%	Texas Instruments DC DC CONVERTER 7.15V	PT78ST109S vs PT78ST174S
