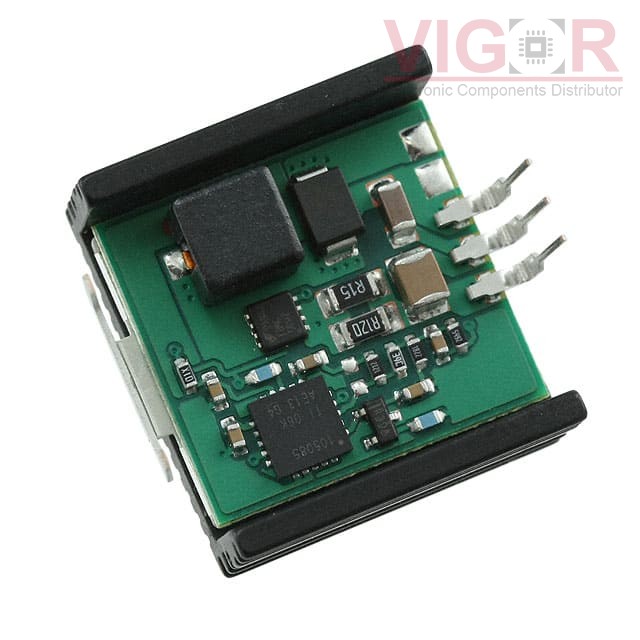

78ST305HC

Part No :: 78ST305HC

Manufacturer: Texas Instruments

VIGOR # :: 5031603

Description: DC DC CONVERTER 5V

Catalog: DC DC Converters

DataSheet: 78ST305HC PDF

Country of origin: -

Date code: -

78ST305HC Specifications

Type	Description
Series:	78ST300
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	8V
Voltage - Input (Max):	20V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 70°C
Efficiency:	80%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.93" L x 1.01" W x 0.38" H (23.6mm x 25.7mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
78ST205HC Match 74%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	78ST305HC vs 78ST205HC
78HT305HC Match 100%	Texas Instruments DC DC CONVERTER 5V	78ST305HC vs 78HT305HC
78SR105HC Match 56%	Texas Instruments DC DC CONVERTER 5V	78ST305HC vs 78SR105HC
78HT205HC Match 74%	Texas Instruments DC DC CONVERTER 5V	78ST305HC vs 78HT205HC
78ST105HC Match 56%	Texas Instruments DC DC CONVERTER 5V	78ST305HC vs 78ST105HC
78HT253HC Match 67%	Texas Instruments DC DC CONVERTER 5.25V	78ST305HC vs 78HT253HC
