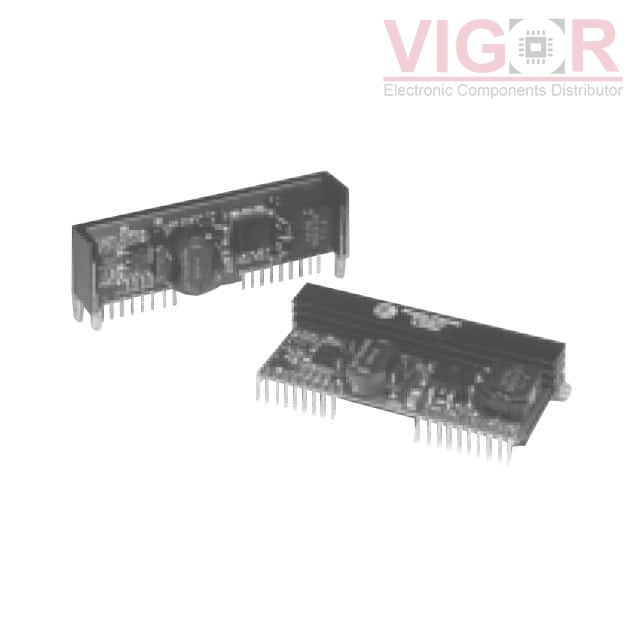

PT3326A

Part No :: PT3326A

Manufacturer: Texas Instruments

VIGOR # :: 5037539

Description: DC DC CONVERTER 2.5V 30W

Catalog: DC DC Converters

DataSheet: PT3326A PDF

Country of origin: -

Date code: -

PT3326A Specifications

Type	Description
Series:	PT3320 (30W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	69%
Mounting Type:	Through Hole, Right Angle
Package / Case:	19-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4561A Match 76%	VIGOR DC-DC POWER SUPPLY MODULE	PT3326A vs PT4561A
PT3321A Match 76%	Texas Instruments DC DC CONVERTER 3.3V 30W	PT3326A vs PT3321A
PT4566A Match 100%	Texas Instruments DC DC CONVERTER 2.5V 30W	PT3326A vs PT4566A
PT4562A Match 52%	Texas Instruments DC DC CONVERTER 5V 30W	PT3326A vs PT4562A
PT4565A Match 80%	Texas Instruments DC DC CONVERTER 2V 30W	PT3326A vs PT4565A
PT4567A Match 71%	Texas Instruments DC DC CONVERTER 1.8V 30W	PT3326A vs PT4567A
