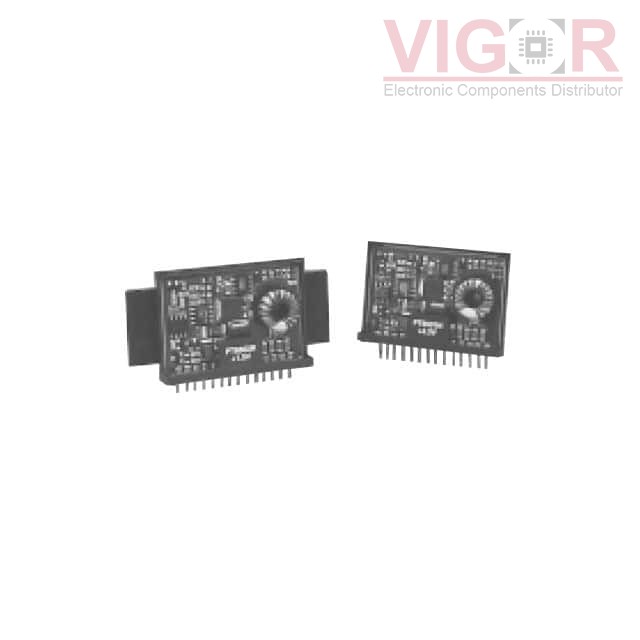

PT6505C

Part No :: PT6505C

Manufacturer: Texas Instruments

VIGOR # :: 5040355

Description: DC DC CONVERTER 1.2V 10W

Catalog: DC DC Converters

DataSheet: PT6505C PDF

Country of origin: -

Date code: -

PT6505C Specifications

Type	Description
Series:	PT6500
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	6V
Voltage - Output 1:	1.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	65%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module
Size / Dimension:	1.71" L x 1.22" W x 0.42" H (43.4mm x 31.0mm x 10.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6605B Match 92%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6505C vs PT6605B
PT6605L Match 92%	Texas Instruments DC DC CONVERTER 1.2V 8W	PT6505C vs PT6605L
PT6605E Match 92%	Texas Instruments DC DC CONVERTER 1.2V 8W	PT6505C vs PT6605E
PT6505F Match 100%	Texas Instruments DC DC CONVERTER 1.2V 10W	PT6505C vs PT6505F
PT6605F Match 92%	Texas Instruments DC DC CONVERTER 1.2V 8W	PT6505C vs PT6605F
PT6515F Match 100%	Texas Instruments DC DC CONVERTER 1.2V 10W	PT6505C vs PT6515F

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1130

Shipped from

HK warehouse

Expected Shipping Date

Sep 08 - Sep 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT6505C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

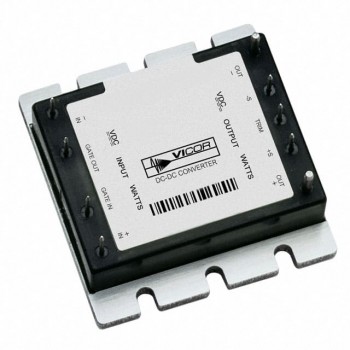

VI-26V-EW-F2
