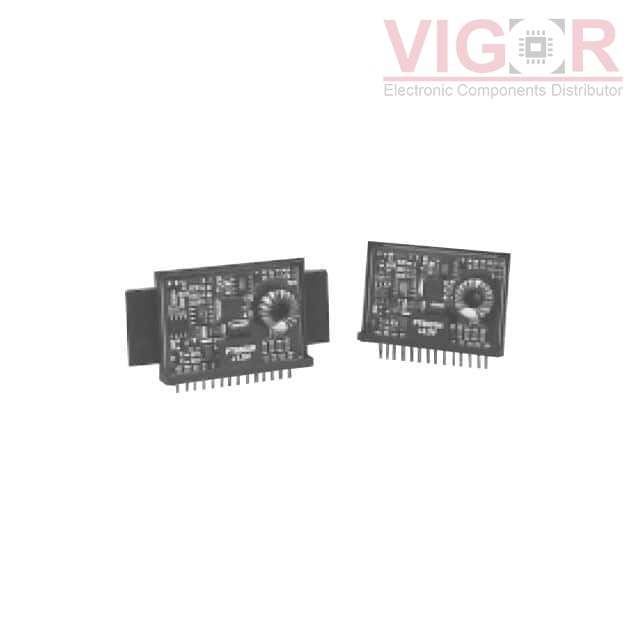

PT6505F

Part No :: PT6505F

Manufacturer: Texas Instruments

VIGOR # :: 5003355

Description: DC DC CONVERTER 1.2V 10W

Catalog: DC DC Converters

DataSheet: PT6505F PDF

Country of origin: -

Date code: -

PT6505F Specifications

Type	Description
Series:	PT6500
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	6V
Voltage - Output 1:	1.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	65%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module
Size / Dimension:	2.36" L x 1.22" W x 0.42" H (59.9mm x 31.0mm x 10.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6605B Match 92%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6505F vs PT6605B
PT6605L Match 92%	Texas Instruments DC DC CONVERTER 1.2V 8W	PT6505F vs PT6605L
PT6605E Match 92%	Texas Instruments DC DC CONVERTER 1.2V 8W	PT6505F vs PT6605E
PT6505C Match 100%	Texas Instruments DC DC CONVERTER 1.2V 10W	PT6505F vs PT6505C
PT6605F Match 92%	Texas Instruments DC DC CONVERTER 1.2V 8W	PT6505F vs PT6605F
PT6515F Match 100%	Texas Instruments DC DC CONVERTER 1.2V 10W	PT6505F vs PT6515F
