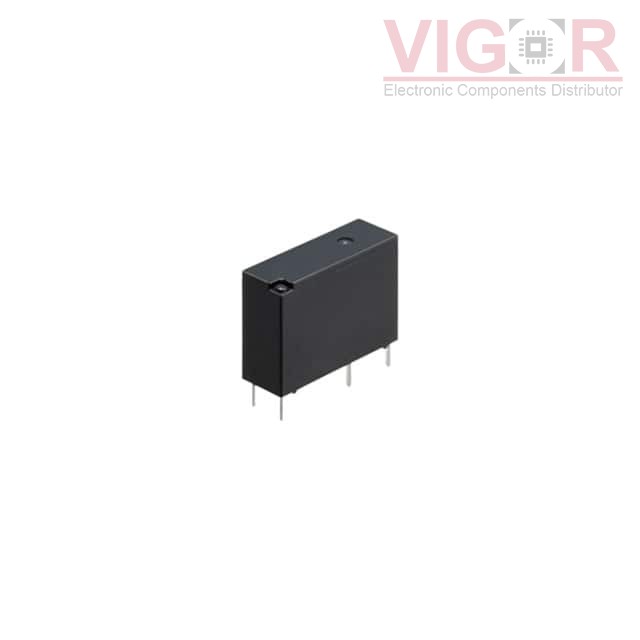

ALDP1F09

Part No :: ALDP1F09

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 5A 9V

Catalog: Power Relays, Over 2 Amps

DataSheet: ALDP1F09 PDF

Availability: 0 pieces

Current price of ALDP1F09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ALDP1F09 Specifications

Type	Description
Series:	ALDP
Package:	Tube
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	9VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	5 A
Switching Voltage:	277VAC - Max
Coil Current:	22.2 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	6.75 VDC
Must Release Voltage:	0.45 VDC
Operate Time:	10 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
