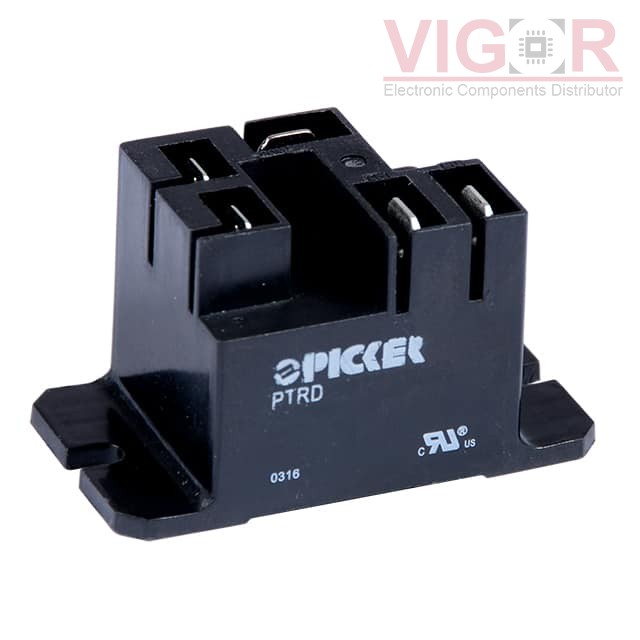

PTRD-1C-12S-T5-X

Part No :: PTRD-1C-12S-T5-X

Manufacturer: Picker Components

VIGOR # :: 2694969

Description: 40A SPDT POWER PCB QC RELAY 12V

Catalog: Power Relays, Over 2 Amps

DataSheet: PTRD-1C-12S-T5-X PDF

Country of origin: -

Date code: -

PTRD-1C-12S-T5-X Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	40 A
Switching Voltage:	300VAC, 110VDC - Max
Coil Current:	80 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 100°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
