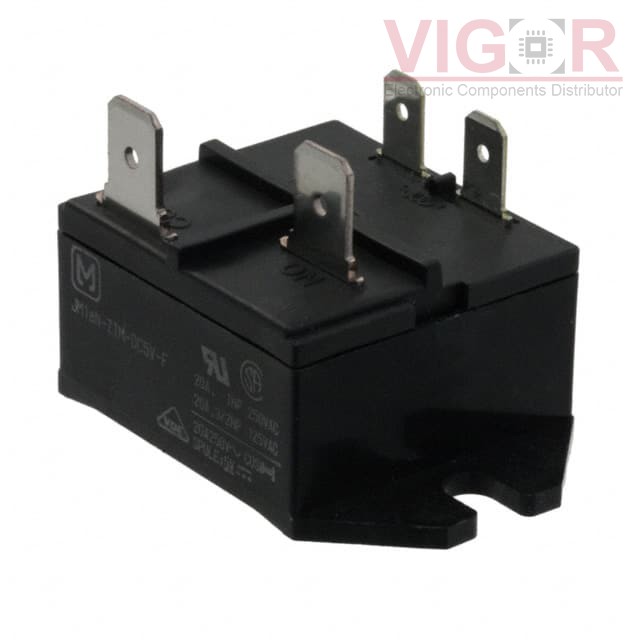

JM1AN-ZTM-DC5V-F

Part No :: JM1AN-ZTM-DC5V-F

Manufacturer: Panasonic

VIGOR # :: 4557858

Description: RELAY GEN PURPOSE SPST 20A 5V

Catalog: Power Relays, Over 2 Amps

DataSheet: JM1AN-ZTM-DC5V-F PDF

Country of origin: Confirming

Date code: TBC

JM1AN-ZTM-DC5V-F Specifications

Type	Description
Series:	JM
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Chassis Mount
Coil Voltage:	5VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	180 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	3.5 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	20 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 60°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
