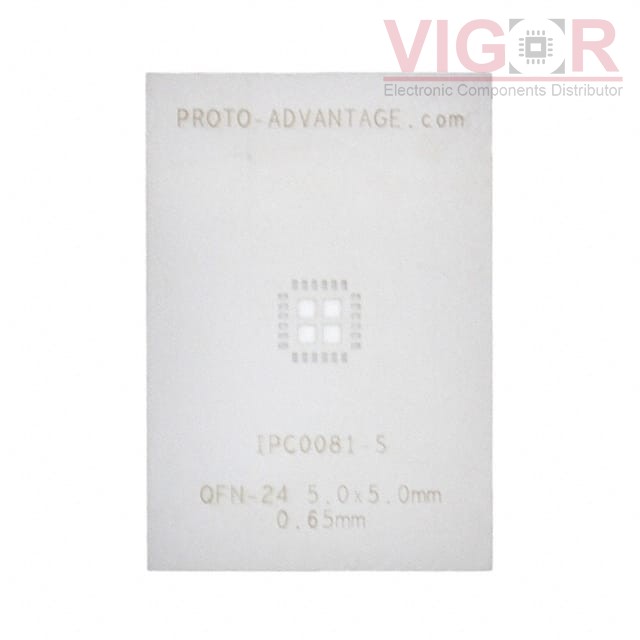

IPC0081-S

Part No :: IPC0081-S

Manufacturer: Chip Quik, Inc.

Description: QFN-24 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: IPC0081-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of IPC0081-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPC0081-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	QFN/LFCSP
Number of Positions:	24
Pitch:	0.026" (0.65mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Thermal Center Pad:	0.142" L x 0.142" W (3.60mm x 3.60mm)
Material:	Stainless Steel
