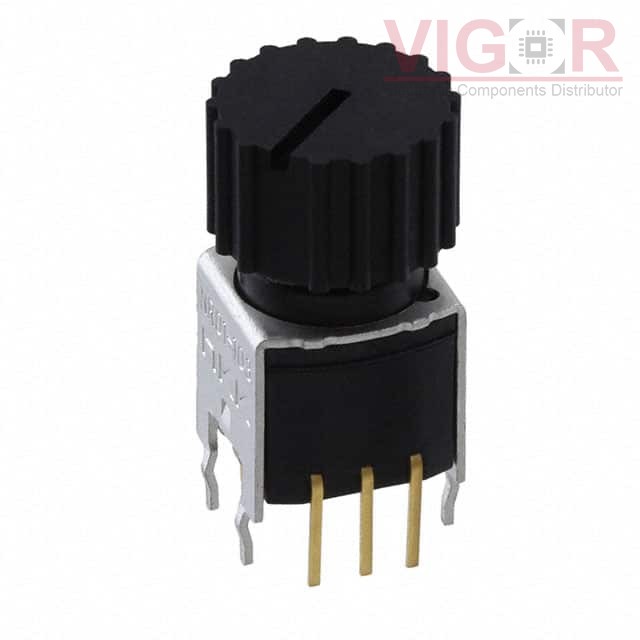

NR01103ANG13-1A

Part No :: NR01103ANG13-1A

Manufacturer: NKK Switches

VIGOR # :: 2718002

Description: SWITCH ROTARY SP3T 0.4VA 28V

Catalog: Rotary Switches

DataSheet: NR01103ANG13-1A PDF

Country of origin: -

Date code: -

NR01103ANG13-1A Specifications

Type	Description
Series:	NR01
Package:	Bulk
Part Status:	Active
Number of Positions:	3
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP3T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	28 V
Voltage Rating - DC:	28 V
Actuator Type:	Knob
Actuator Length:	7.00mm
Angle of Throw:	45°
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.50mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 73

Shipped from

HK warehouse

Expected Shipping Date

Nov 12 - Nov 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$11.5500~~	~~$11.55~~
10	~~$9.5404~~	~~$95.40~~
25	~~$9.4148~~	~~$235.37~~
50	~~$8.6617~~	~~$433.09~~
100	~~$8.2851~~	~~$828.51~~
250	~~$7.4064~~	~~$1 851.59~~
500	~~$7.2808~~	~~$3 640.42~~
1000	~~$7.1553~~	~~$7 155.31~~

Current price of NR01103ANG13-1A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
