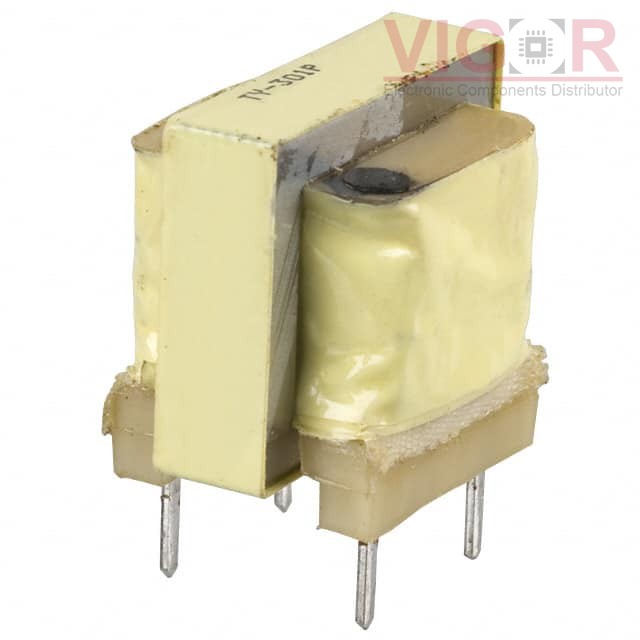

TY-301P

Part No :: TY-301P

Manufacturer: Triad Magnetics

Description: TRANSF 900 OHM SEC. 0MA DC TEL

Catalog: Audio Transformers

DataSheet: TY-301P PDF

Availability: 1256 pieces

Unit Price: ~~$3.97760~~

Current price of TY-301P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TY-301P Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1.27
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	900
DC Resistance (DCR) - Primary:	36Ohm
DC Resistance (DCR) - Secondary:	76Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	±0.5dB
Voltage - Isolation:	1500VAC
Insertion Loss:	1dB Typ
Return Loss:	26dB Typ
Power Level:	-45dB ~ 7dB
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max):	0.740" (18.80mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
