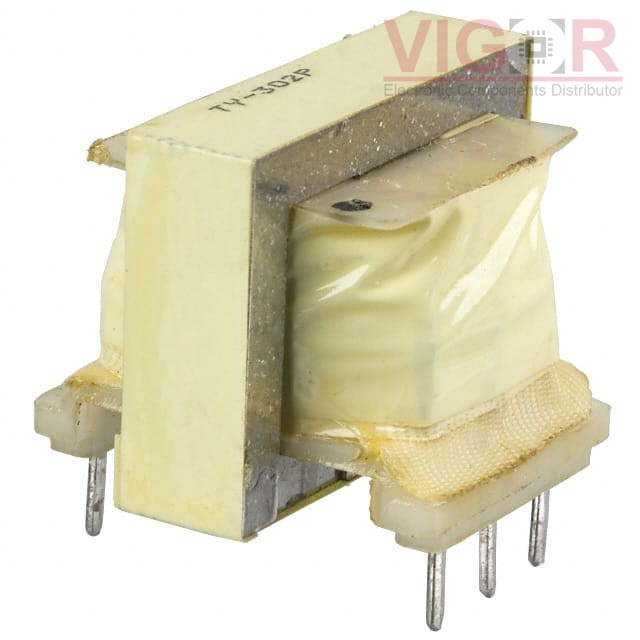

TY-302P-B

Part No :: TY-302P-B

Manufacturer: Triad Magnetics

Description: TRANSF 600 OHM 0MA DC TEL HYBRID

Catalog: Audio Transformers

DataSheet: TY-302P-B PDF

Availability: 1680 pieces

Unit Price: ~~$4.41600~~

Current price of TY-302P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TY-302P-B Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1.47
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	600/600
DC Resistance (DCR) - Primary:	34Ohm
DC Resistance (DCR) - Secondary:	24Ohm, 24Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	-
Voltage - Isolation:	1500VAC
Insertion Loss:	0.65dB Typ
Return Loss:	32dB Typ
Power Level:	-45dB ~ 7dB
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	1.040" L x 0.960" W (26.42mm x 24.38mm)
Height - Seated (Max):	0.870" (22.10mm)
Termination Style:	PC Pin
