PE-68383NL

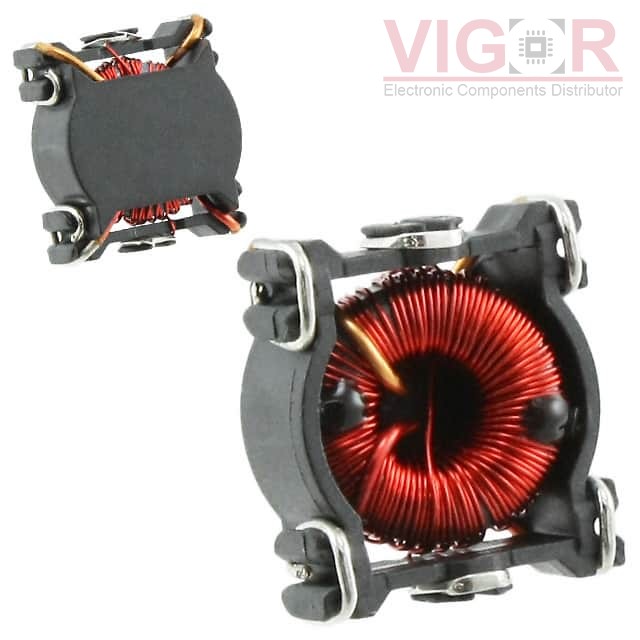

Image is for reference,
please contact us to get the real picture

Part No :: PE-68383NL

Manufacturer: PulseLarsen Antenna

Description: CURR SENSE XFMR 1:1:200 SMD

Catalog: Current Sense Transformers

DataSheet: PE-68383NL PDF

Availability: 0 pieces

Unit Price: ~~$1.51680~~

Current price of PE-68383NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PE-68383NL Specifications

Type	Description
Series:	PE-68XXXNL
Package:	Tube
Part Status:	Active
Frequency Range:	50kHz ~ 500kHz
Type:	Invasive
Current Rating (Amps):	1.15mOhm Primary, 3.9Ohm Secondary
Inductance:	-
ET (Volt-Time):	Surface Mount
Turns Ratio - Primary:Secondary:	0.495" L x 0.490" W (12.57mm x 12.45mm)
Current Ratio:	0.280" (7.11mm)
DC Resistance (DCR):	-
