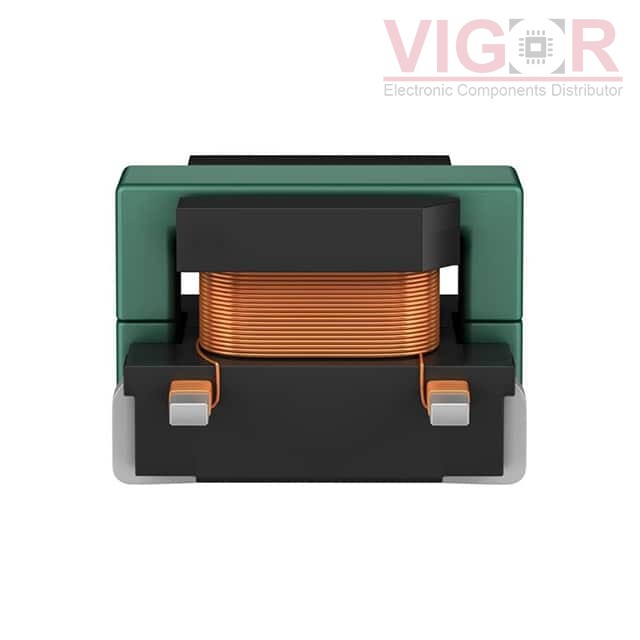

B82801A1743A030

Part No :: B82801A1743A030

Manufacturer: TDK EPCOS

Description: CURR SENSE XFMR 1:30 SMD

Catalog: Current Sense Transformers

DataSheet: B82801A1743A030 PDF

Availability: 577 pieces

Unit Price: ~~$3.27000~~

Current price of B82801A1743A030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82801A1743A030 Specifications

Type	Description
Series:	B82801A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	1:30
Inductance:	-
ET (Volt-Time):	2.5mOhm Primary, 800mOhm Secondary
Turns Ratio - Primary:Secondary:	-
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.185" L x 0.138" W (4.70mm x 3.50mm)
Ratings:	0.138" (3.50mm)
Mounting Type:	J Lead

Please confirm the specifications of the products when ordering.
