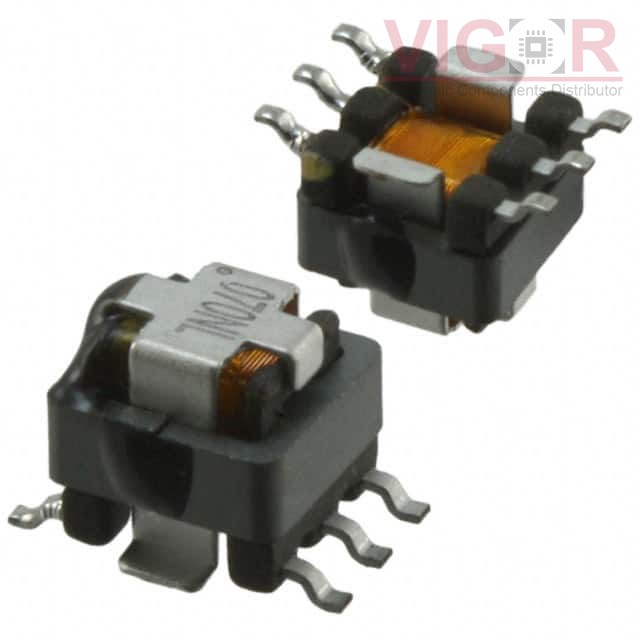

PA1005.020QNL

Part No :: PA1005.020QNL

Manufacturer: PulseLarsen Antenna

VIGOR # :: 1983396

Description: CURR SENSE XFMR 1:20 20A SMD

Catalog: Current Sense Transformers

DataSheet: PA1005.020QNL PDF

Country of origin: -

Date code: -

PA1005.020QNL Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	1:20
Inductance:	-
ET (Volt-Time):	0.75mOhm Primary, 550mOhm Secondary
Turns Ratio - Primary:Secondary:	AEC-Q200
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.284" L x 0.330" W (7.21mm x 8.38mm)
Ratings:	0.217" (5.50mm)
Mounting Type:	Gull Wing
