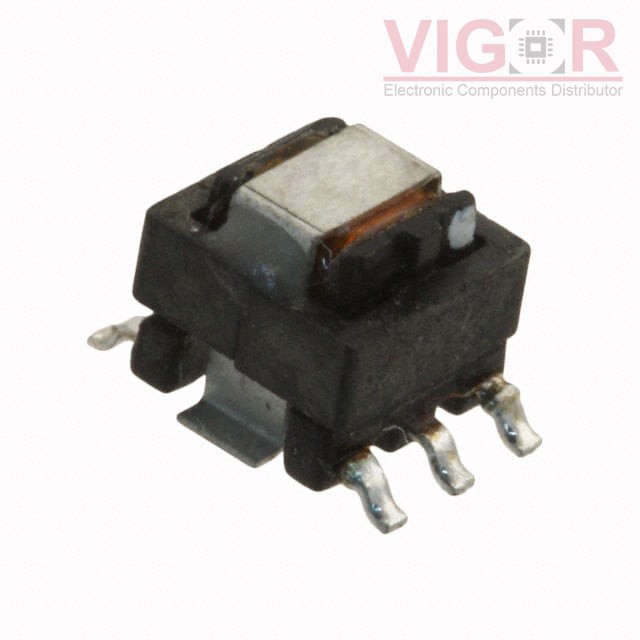

B82801B0504A050

Part No :: B82801B0504A050

Manufacturer: TDK EPCOS

Description: CURR SENSE XFMR 1:50 SMD

Catalog: Current Sense Transformers

DataSheet: B82801B0504A050 PDF

Availability: 145 pieces

Unit Price: ~~$2.52000~~

Current price of B82801B0504A050 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82801B0504A050 Specifications

Type	Description
Series:	B82801B
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	0.8mOhm Primary, 1.5Ohm Secondary
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	Surface Mount
Current Ratio:	0.280" L x 0.320" W (7.11mm x 8.13mm)
DC Resistance (DCR):	0.200" (5.08mm)
Ratings:	Gull Wing

Please confirm the specifications of the products when ordering.
