ALAN-505

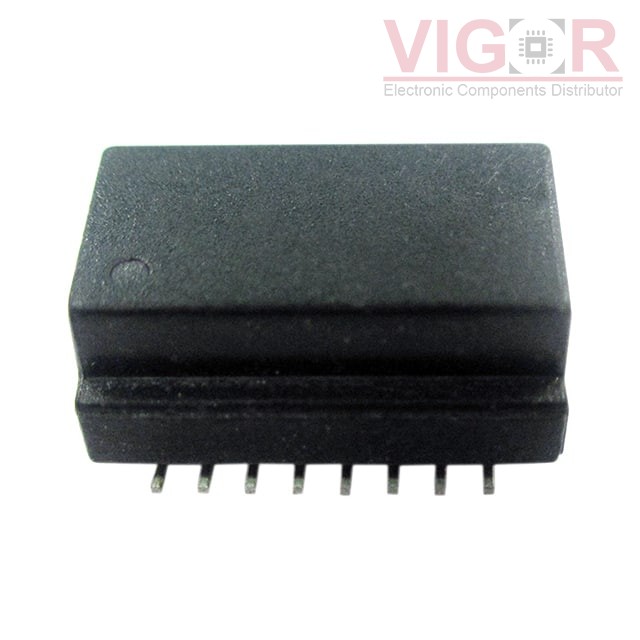

Image is for reference,
please contact us to get the real picture

Part No :: ALAN-505

Manufacturer: Abracon

Description: PULSE XFMR 1CT:1CT 350UH

Catalog: Pulse Transformers

DataSheet: ALAN-505 PDF

Availability: 0 pieces

Unit Price: ~~$3.15072~~

Current price of ALAN-505 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ALAN-505 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Transformer Type:	LAN 10/100 Base-T
Inductance:	350µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1CT:1CT
Mounting Type:	Surface Mount
Size / Dimension:	0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max):	0.234" (5.95mm)
Operating Temperature:	0°C ~ 70°C

Please confirm the specifications of the products when ordering.
