SM91501ALE

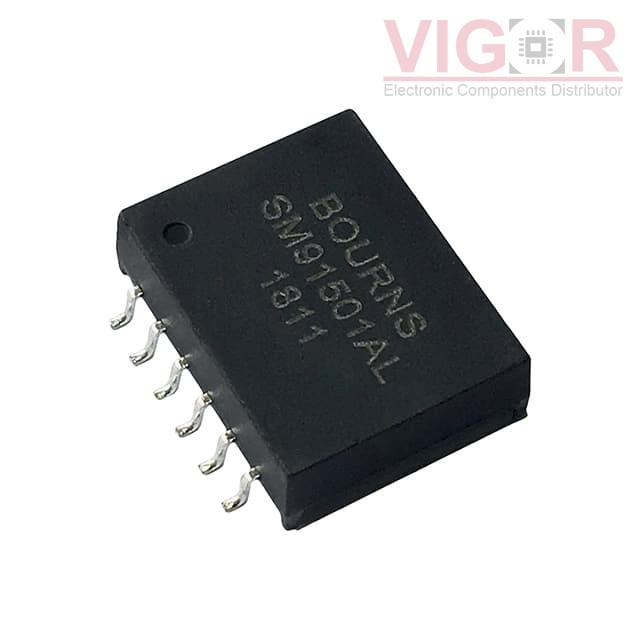

Image is for reference,
please contact us to get the real picture

Part No :: SM91501ALE

Manufacturer: J.W. Miller / Bourns

Description: BMS XFORMER 2-CH 1600V AECQ +125

Catalog: Pulse Transformers

DataSheet: SM91501ALE PDF

Availability: 2591 pieces

Unit Price: ~~$5.19000~~

Current price of SM91501ALE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SM91501ALE Specifications

Type	Description
Series:	Automotive, AEC-Q200, SM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	-
Inductance:	150µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1CT:1CT
Mounting Type:	Surface Mount
Size / Dimension:	0.583" L x 0.460" W (14.81mm x 11.68mm)
Height - Seated (Max):	0.197" (5.00mm)
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
