750311659

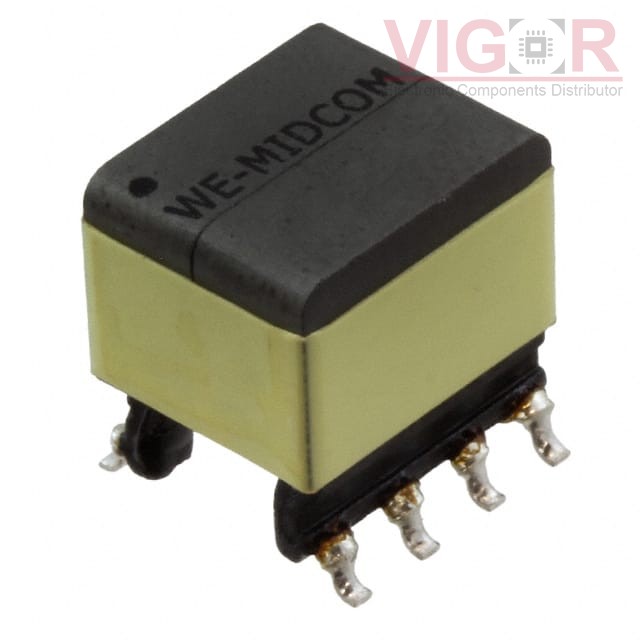

Image is for reference,
please contact us to get the real picture

Part No :: 750311659

Manufacturer: Würth Elektronik Midcom

Description: FLYBACK TRANSFORMER WE-FB LT8300

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750311659 PDF

Availability: 545 pieces

Unit Price: ~~$3.97000~~

Current price of 750311659 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750311659 Specifications

Type	Description
Series:	WE-FB, MID-FLYLT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LT8300
Chipset Manufacturer:	Linear Technology
Voltage - Primary:	36 ~ 72V
Voltage - Auxiliary:	5V @ 20mA
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	300µH @ 100kHz
Frequency:	180kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	-
Height - Seated (Max):	0.415" (10.54mm)
Footprint:	0.385" L x 0.360" W (9.78mm x 9.14mm)
Style:	-
