NLAS3799LMNR2G vs NS5A4684SMNTBG

This detailed comparison of NLAS3799LMNR2G and NS5A4684SMNTBG in the Interface - Analog Switches, Multiplexers, Demultiplexers provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

NLAS3799LMNR2G

VIGOR

Request For Quote

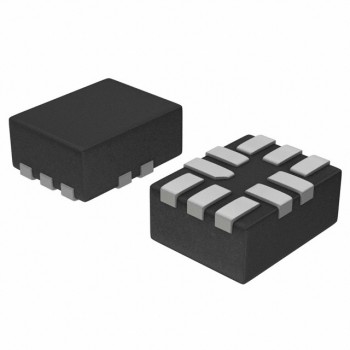

NS5A4684SMNTBG

Sanyo Semiconductor/ON Semiconductor

Request For Quote

Specifications Hide identical items

Manufacturer	VIGOR	Sanyo Semiconductor/ON Semiconductor
Package / Case	16-WFQFN	10-WFQFN
Description	DPDT, 2 FUNC, 2 CHANNEL	IC ANLG SWITCH DUAL SPDT 10WQFN
In Stock	280	912
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Active
Series	-	-
Package	Bulk	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Switch Circuit	DPDT	SPDT
Multiplexer/Demultiplexer Circuit	2:2	2:1
Number of Circuits	2	2
On-State Resistance (Max)	400mOhm	400mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm (Max)	100mOhm (Max)
Voltage - Supply, Single (V+)	1.65V ~ 3.6V	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns	50ns, 30ns
-3db Bandwidth	19MHz	19MHz
Charge Injection	42pC	38pC
Channel Capacitance (CS(off), CD(off))	3pF	60pF
Current - Leakage (IS(off)) (Max)	500nA	100nA
Crosstalk	-90dB @ 100kHz	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Supplier Device Package	16-WQFN (1.8x2.6)	10-WQFN (1.4x1.8)
