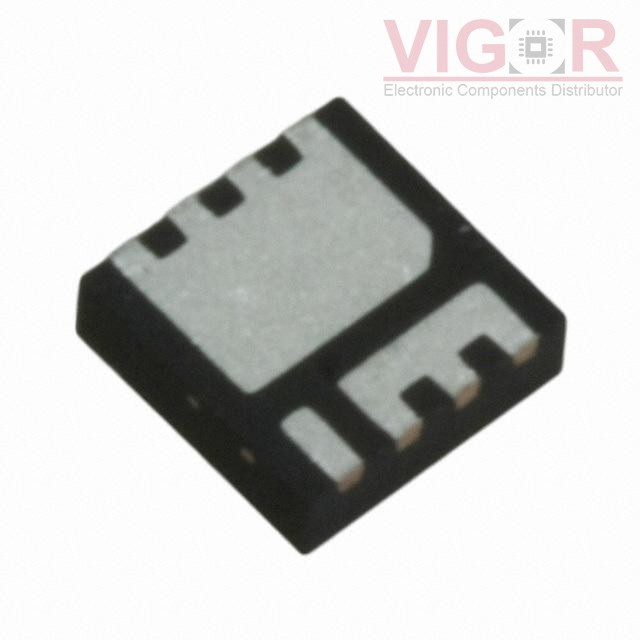

IRFH3707TRPBF

Part No :: IRFH3707TRPBF

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 30V 12A/29A 8PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRFH3707TRPBF PDF

Availability: 1001 pieces

Current price of IRFH3707TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRFH3707TRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta), 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	12.4mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs:	8.1 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	755 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.8W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-PQFN (3x3)
Package / Case:	8-PowerVDFN
