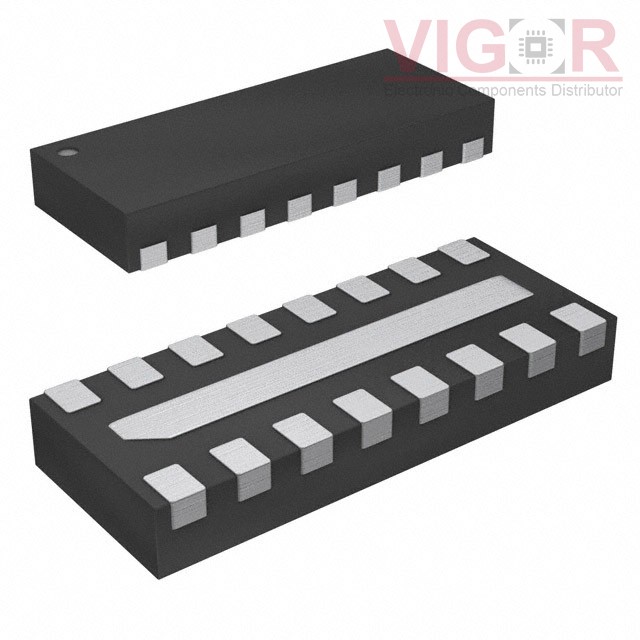

ECLAMP2398P.TCT

Image is for reference,
please contact us to get the real picture

Part No :

ECLAMP2398P.TCT

Manufacturer
Semtech
Description
FILTER LC(PI) 19NH/12PF ESD SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 09 - Oct 13 2025
DataSheet
ECLAMP2398P.TCT PDF
Availability
2371 pieces
Unit Price
$1.61000

Current price of ECLAMP2398P.TCT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:EClamp™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:5th
Technology:LC (Pi)
Number of Channels:8
Center / Cutoff Frequency:150MHz (Cutoff)
Attenuation Value:30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms):18
Current:-
Values:L = 19nH, C = 12pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:16-UFDFN Exposed Pad
Size / Dimension:0.157" L x 0.063" W (4.00mm x 1.60mm)
Height:0.026" (0.65mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

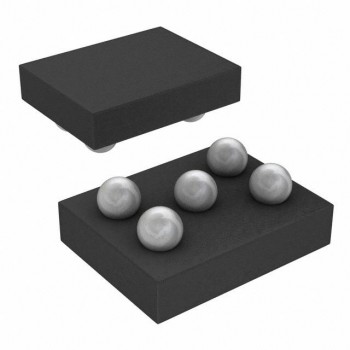

HOT EMIF02-SPK02F2

EMIF02-SPK02F2

IC EMI FILTER ESD PROT SMD

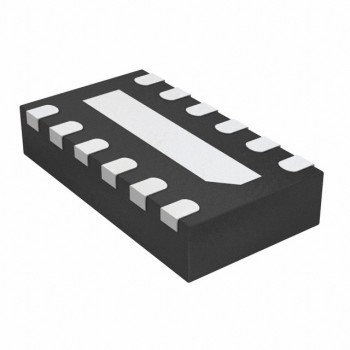

HOT IP4254CZ12-6-TTL,1

IP4254CZ12-6-TTL,1

6-TTL - DATA LINE FILTER

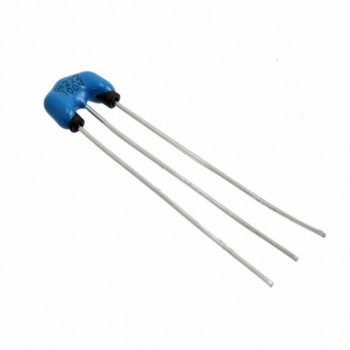

HOT DSS1NB32A680Q91A
