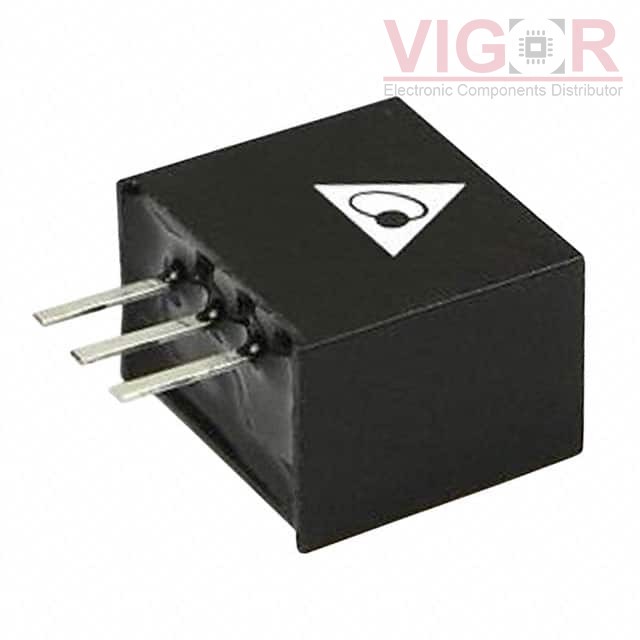

PM05S120A

Part No :: PM05S120A

Manufacturer: Delta Electronics / Power

VIGOR # :: 4109576

Description: DC DC CONVERTER 12V 6W

Catalog: DC DC Converters

DataSheet: PM05S120A PDF

Country of origin: -

Date code: -

PM05S120A Specifications

Type	Description
Series:	PM05S
Package:	Tube
Part Status:	Active
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	32V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	6 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, SCP
Operating Temperature:	-40°C ~ 90°C
Efficiency:	97%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1227

Shipped from

HK warehouse

Expected Shipping Date

May 28 - Jun 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.9200~~	~~$6.92~~
5	~~$6.8193~~	~~$34.10~~
10	~~$6.7196~~	~~$67.20~~
25	~~$6.5219~~	~~$163.05~~
50	~~$6.3244~~	~~$316.22~~
100	~~$6.1267~~	~~$612.67~~
300	~~$5.9291~~	~~$1 778.72~~
500	~~$5.5338~~	~~$2 766.90~~

Current price of PM05S120A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AM2D-1209SH30-RZ

DC DC CONVERTER 9V 2W

THM 6-2415WI

DC DC CONVERTER 24V 6W

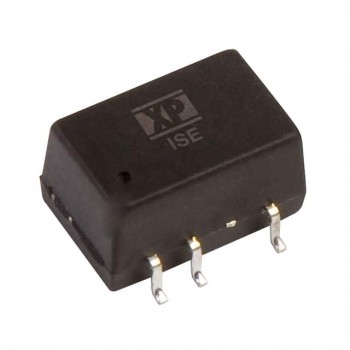

ISE1205A
