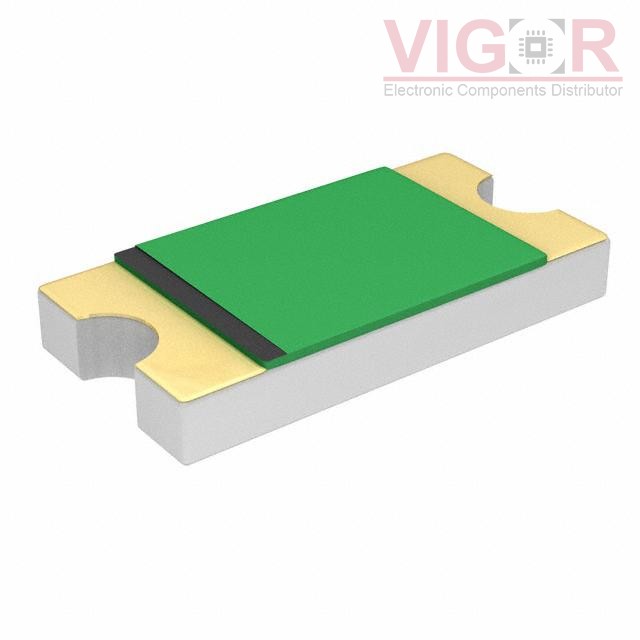

0ZCJ0050AF2E

Part No :: 0ZCJ0050AF2E

Manufacturer: Bel Fuse, Inc.

Description: PTC RESET FUSE 24V 500MA 1206

Catalog: PTC Resettable Fuses

DataSheet: 0ZCJ0050AF2E PDF

Availability: 99501 pieces

Unit Price: ~~$0.17000~~

Current price of 0ZCJ0050AF2E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0ZCJ0050AF2E Specifications

Type	Description
Series:	0ZCJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymeric
Voltage - Max:	24V
Current - Max:	100 A
Current - Hold (Ih) (Max):	500 mA
Current - Trip (It):	1 A
Time to Trip:	100 ms
Resistance - Initial (Ri) (Min):	150 mOhms
Resistance - Post Trip (R1) (Max):	750 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Concave
Size / Dimension:	0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max):	-
Thickness (Max):	0.047" (1.20mm)
Lead Spacing:	-
