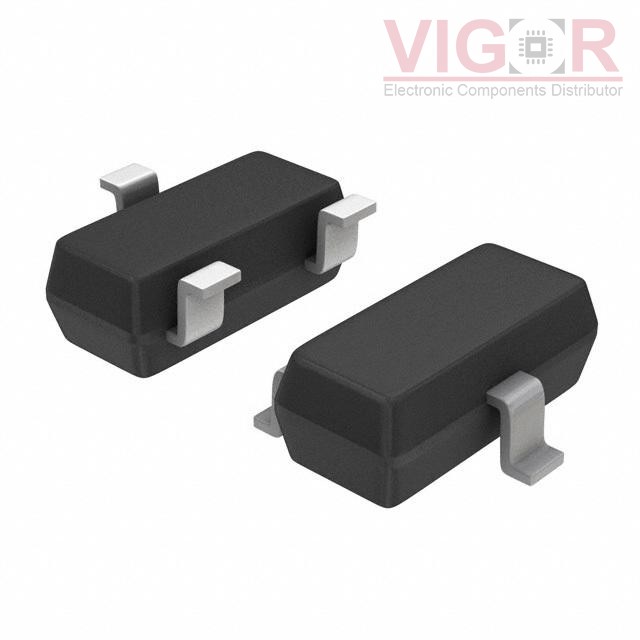

SBAT54ALT1G

Part No :: SBAT54ALT1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2942553

Description: DIODE ARRAY SCHOTTKY 30V SOT23-3

Catalog: Diodes - Rectifiers - Arrays

DataSheet: SBAT54ALT1G PDF

Country of origin: -

Date code: -

SBAT54ALT1G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	800 mV @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	2 µA @ 25 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3 (TO-236)
