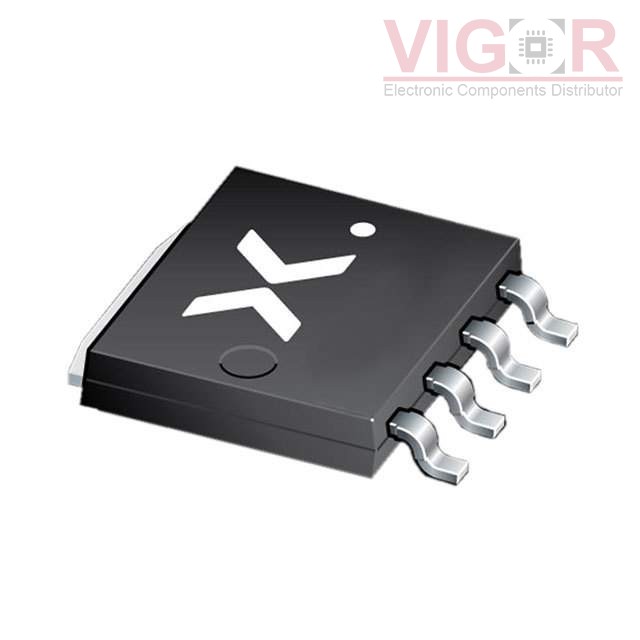

PSMN1R0-40YSHX

Part No :: PSMN1R0-40YSHX

Manufacturer: Nexperia

Description: MOSFET N-CH 40V 290A LFPAK56

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PSMN1R0-40YSHX PDF

Availability: 787 pieces

Current price of PSMN1R0-40YSHX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PSMN1R0-40YSHX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	290A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	122 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	9433 pF @ 20 V
FET Feature:	Schottky Diode (Body)
Power Dissipation (Max):	333W (Ta)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LFPAK56, Power-SO8
Package / Case:	SOT-1023, 4-LFPAK
