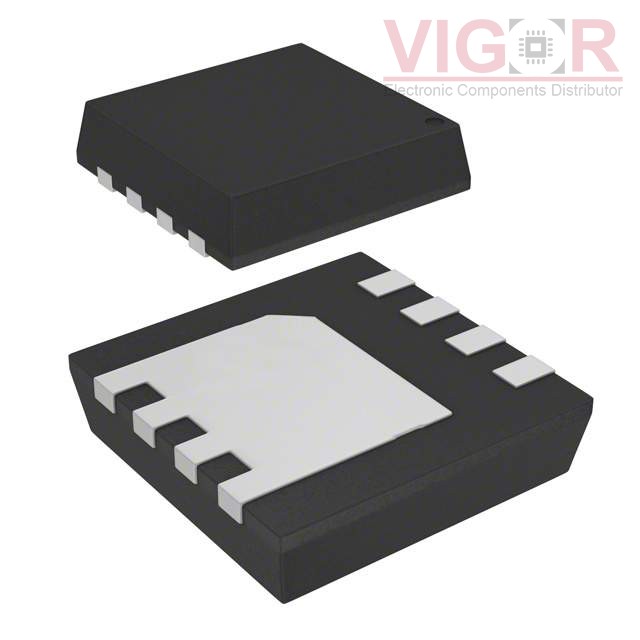

AONR66922

Part No :: AONR66922

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 100V 15A/50A 8DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AONR66922 PDF

Availability: 0 pieces

Current price of AONR66922 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AONR66922 Specifications

Type	Description
Series:	AlphaSGT™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	15A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	46 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2180 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	4.1W (Ta), 52W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN-EP (3.3x3.3)
Package / Case:	8-PowerWDFN
