7443631000

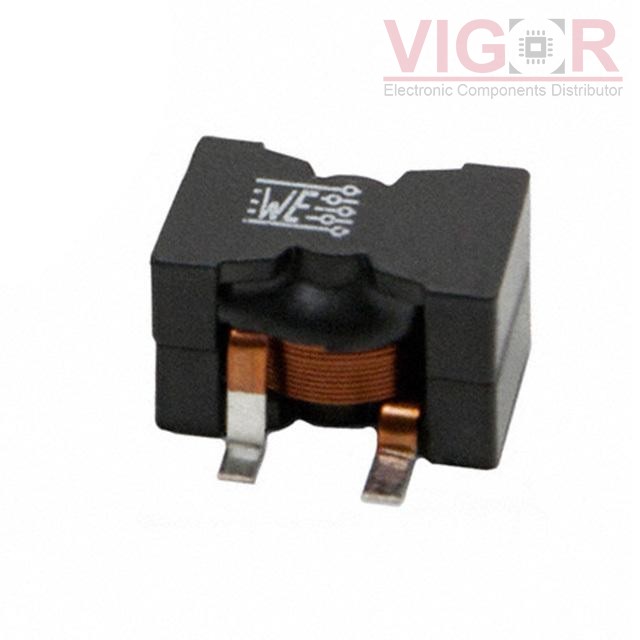

Image is for reference,
please contact us to get the real picture

Part No :: 7443631000

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 10UH 16A 7.96 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 7443631000 PDF

Availability: 4881 pieces

Unit Price: ~~$6.93000~~

Current price of 7443631000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7443631000 Specifications

Type	Description
Series:	WE-HCF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	10 µH
Tolerance:	±15%
Current Rating (Amps):	16 A
Current - Saturation (Isat):	23A
Shielding:	Shielded
DC Resistance (DCR):	7.96mOhm
Q @ Freq:	-
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.846" L x 0.827" W (21.50mm x 21.00mm)
Height - Seated (Max):	0.551" (14.00mm)
