744742223

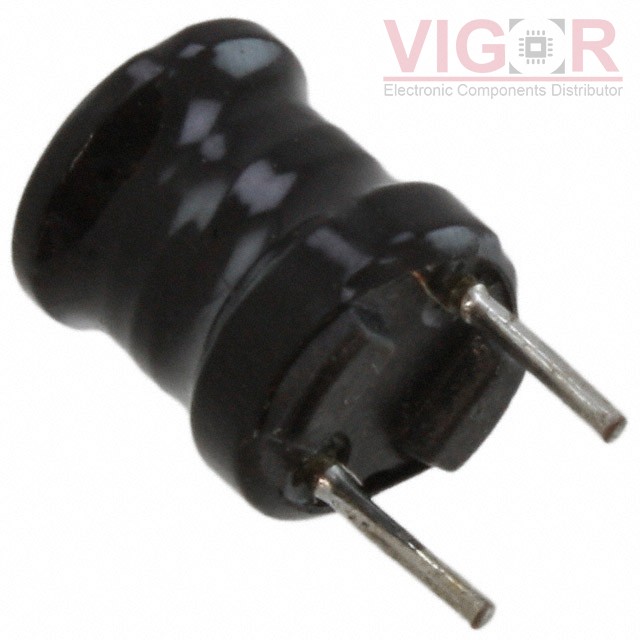

Product image
Product thumb
Part No :

744742223

Manufacturer
Würth Elektronik Midcom
VIGOR # :

1635695

Description
FIXED IND 22MH 90MA 55 OHM TH
Catalog
Fixed Inductors
DataSheet
744742223 PDF
Country of origin
Confirming
Date code
TBC
ads
744742223 Specifications
Type Description
Series:WE-TI
Package:Tray
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 mH
Tolerance:±5%
Current Rating (Amps):90 mA
Current - Saturation (Isat):110mA
Shielding:Unshielded
DC Resistance (DCR):55Ohm Max
Q @ Freq:-
Frequency - Self Resonant:330kHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.335" Dia (8.50mm)
Height - Seated (Max):0.236" (6.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 60
Shipped from
HK warehouse
Expected Shipping Date
Nov 15 - Nov 19 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.9600 $0.96
10 $0.9090 $9.09
50 $0.8470 $42.35
140 $0.7530 $105.42
560 $0.6900 $386.40

Current price of 744742223 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
ISC1812ER331K

ISC1812ER331K

FIXED IND 330UH 96MA 7.54 OHM

8532R-31H

8532R-31H

FIXED IND 330UH 740MA 650 MOHM

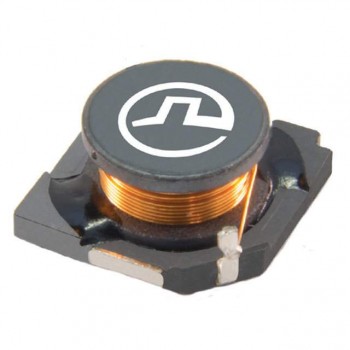

PA4305.333NLT
