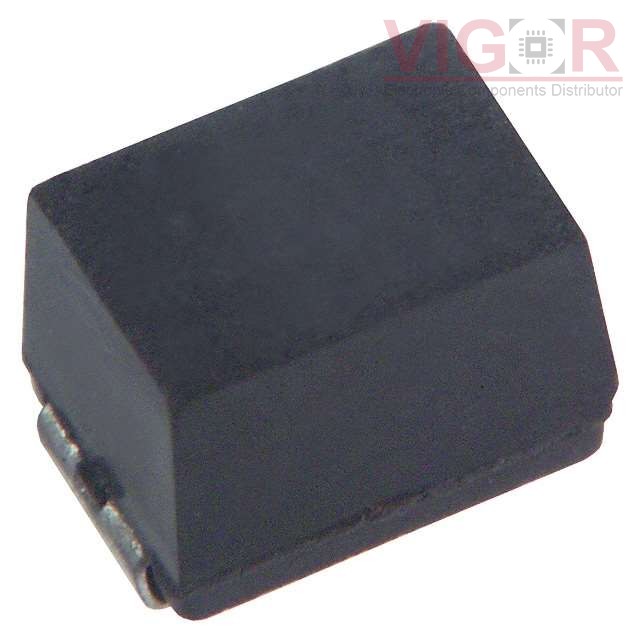

ELJ-FB220JF

Part No :: ELJ-FB220JF

Manufacturer: Panasonic

VIGOR # :: 4435591

Description: FIXED IND 22UH 195MA 2.6 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-FB220JF PDF

Country of origin: -

Date code: -

ELJ-FB220JF Specifications

Type	Description
Series:	FB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±5%
Current Rating (Amps):	195 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.6Ohm Max
Q @ Freq:	50 @ 2.52MHz
Frequency - Self Resonant:	15MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)
