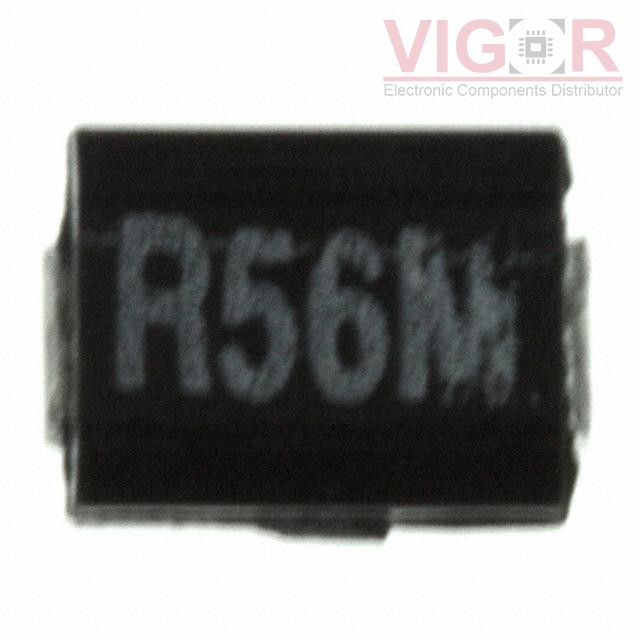

PM40-R56M

Part No :: PM40-R56M

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4446047

Description: FIXED IND 560NH 450MA 550MOHM SM

Catalog: Fixed Inductors

DataSheet: PM40-R56M PDF

Country of origin: -

Date code: -

PM40-R56M Specifications

Type	Description
Series:	PM40
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Molded
Material - Core:	Non-Magnetic
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	450 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	30 @ 25.2MHz
Frequency - Self Resonant:	180MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.126" (3.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 02 - Jan 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PM40-R56M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

4426-9RC

FIXED IND 35.5NH 3A SMD

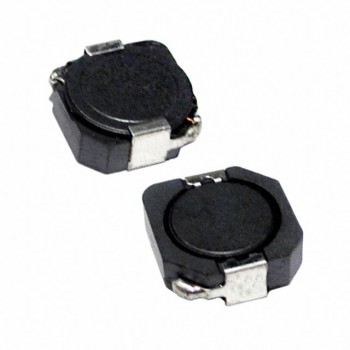

ASPI-0315S-5R6M-T
