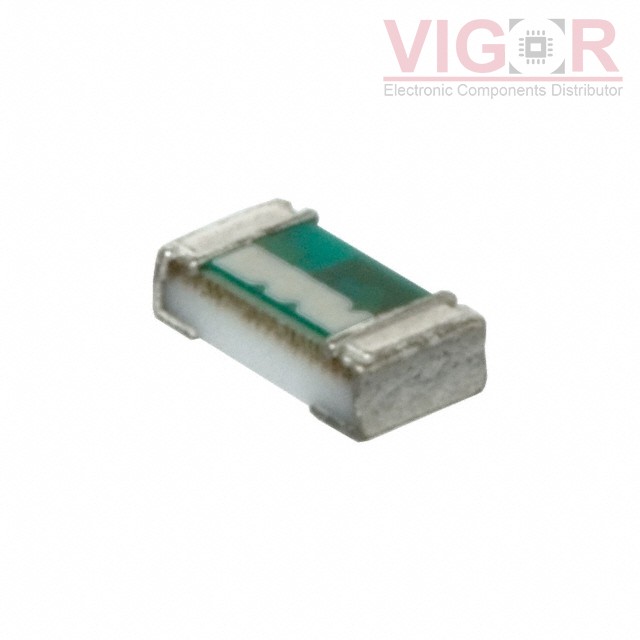

HPL1005-7N5

Part No :: HPL1005-7N5

Manufacturer: Susumu

VIGOR # :: 4446604

Description: FIXED IND 7.5NH 380MA 830 MOHM

Catalog: Fixed Inductors

DataSheet: HPL1005-7N5 PDF

Country of origin: -

Date code: -

HPL1005-7N5 Specifications

Type	Description
Series:	HPL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Thin Film
Material - Core:	-
Inductance:	7.5 nH
Tolerance:	±0.2nH
Current Rating (Amps):	380 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	830mOhm Max
Q @ Freq:	10 @ 300MHz
Frequency - Self Resonant:	4GHz
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	300 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.013" (0.33mm)
