B65805J0000R097

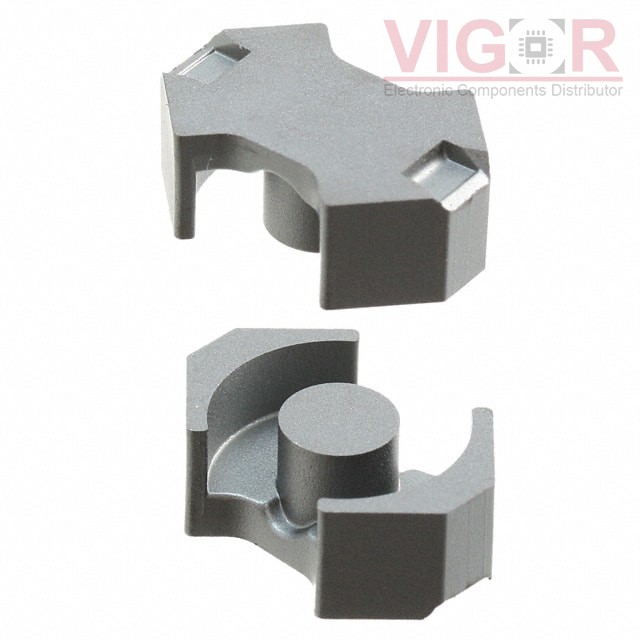

Product image
Product thumb
Part No :

B65805J0000R097

Manufacturer
TDK EPCOS
VIGOR # :

4179376

Description
FERRITE CORE RM 2UH N97 2PCS
Catalog
Ferrite Cores
DataSheet
B65805J0000R097 PDF
Country of origin
-
Date code
-
ads
B65805J0000R097 Specifications
Type Description
Series:B65805
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Active
Core Type:RM
Supplier Device Package:RM 5
Material:N97
Diameter:-
Inductance Factor (Al):2 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1480
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:0.93
Effective Length (le) mm:22.1
Effective Area (Ae) mm²:23.8
Minimum Core Cross Section (Amin) mm²:18
Effective Magnetic Volume (Ve) mm³:526
Finish:Uncoated
Height:5.25mm
Length:14.60mm
Width:6.80mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 393
Shipped from
HK warehouse
Expected Shipping Date
Apr 14 - Apr 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.4300 $2.43
500 $1.2044 $602.21
1000 $1.1055 $1 105.49
2500 $1.0754 $2 688.45

Current price of B65805J0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
B65807C0250A048

B65807C0250A048

FERRITE CORE RM 250NH N48 2PCS

PC95EIR18/5/12-Z

PC95EIR18/5/12-Z

FERRITE CORE EIR 3.69UH 1SET

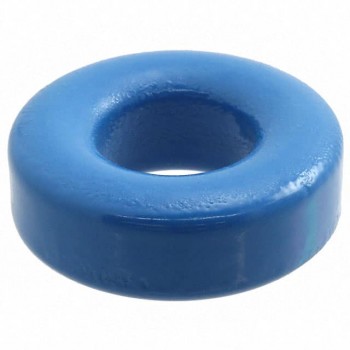

B64290L0632X027
