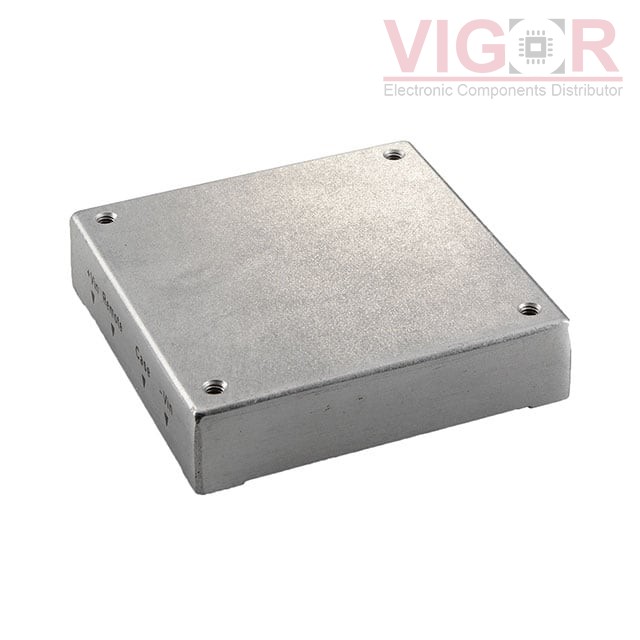

CHB100W-24S28N

Part No :: CHB100W-24S28N

Manufacturer: Cincon

VIGOR # :: 4169592

Description: DC DC CONVERTER 28V 100W

Catalog: DC DC Converters

DataSheet: CHB100W-24S28N PDF

Country of origin: -

Date code: -

CHB100W-24S28N Specifications

Type	Description
Series:	CHB100W (100W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	28V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3.57A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
HAE100-24S28W Match 90%	P-Duke Technology, Inc. ISOLATED/100W /VOUT:28	CHB100W-24S28N vs HAE100-24S28W
CHB75W-24S24N Match 72%	Cincon DC DC CONVERTER 24V 75W	CHB100W-24S28N vs CHB75W-24S24N
CHE75W-24S24N Match 72%	Cincon DC DC CONVERTER 24V 75W	CHB100W-24S28N vs CHE75W-24S24N
CHB100W-24S28 Match 100%	Cincon DC DC CONVERTER 28V 100W	CHB100W-24S28N vs CHB100W-24S28
RP75H-2424SRW/N-HC Match 68%	RECOM Power DC DC CONVERTER 24V 76W	CHB100W-24S28N vs RP75H-2424SRW/N-HC
ICH7524WS24N Match 72%	XP Power DC DC CONVERTER 24V 75W	CHB100W-24S28N vs ICH7524WS24N
