HL2-PL-AC100V-F

HL2-PL-AC100V-F

Image is for reference,
please contact us to get the real picture

Part No :

HL2-PL-AC100V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 10A 100V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 29 - Nov 02 2025
DataSheet
HL2-PL-AC100V-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HL2-PL-AC100V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL2-PL-AC100V-F Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:100VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):10 A
Switching Voltage:125VAC - Nom
Coil Current:12 mA
Coil Type:Non Latching
Features:Lighted Indicator
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:80 VAC
Must Release Voltage:30 VAC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-50°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT JM1AN-ZTM-DC5V-F

JM1AN-ZTM-DC5V-F

RELAY GEN PURPOSE SPST 20A 5V
HOT MJN1C-AC240

MJN1C-AC240

RELAY GEN PURPOSE SPDT 10A 240V

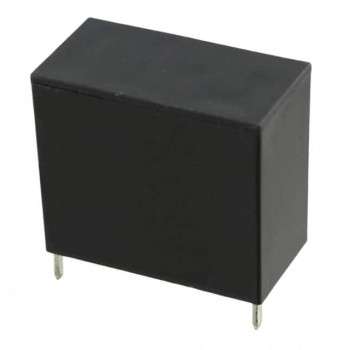

HOT JM1AN-P-DC5V-F
