EYSHCNZXZ

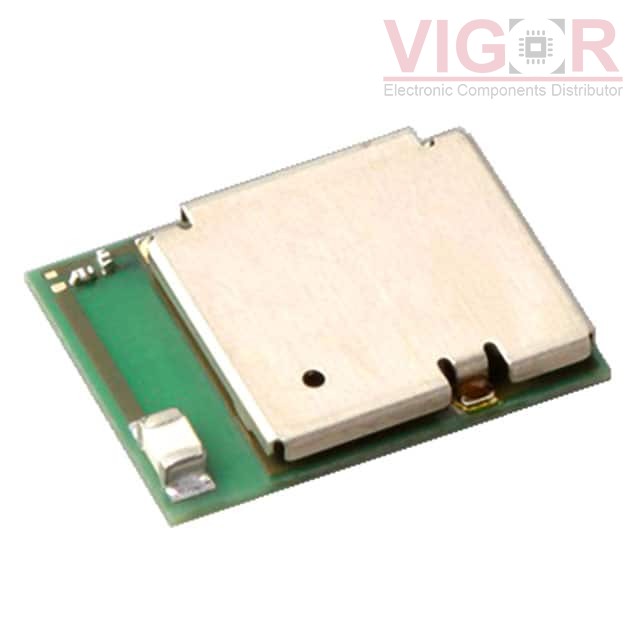

Image is for reference,
please contact us to get the real picture

Part No :: EYSHCNZXZ

Manufacturer: TAIYO YUDEN

Description: RX TXRX MODULE BT/ANT CHIP SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: EYSHCNZXZ PDF

Availability: 0 pieces

Unit Price: ~~$12.01000~~

Current price of EYSHCNZXZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EYSHCNZXZ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
RF Family/Standard:	Bluetooth/ANT
Protocol:	Bluetooth v4.2
Modulation:	GFSK
Frequency:	2.4GHz ~ 2.48GHz
Data Rate:	1Mbps
Power - Output:	4dBm
Sensitivity:	-96dBm
Serial Interfaces:	I²C, I²S, SPI, UART
Antenna Type:	Integrated, Chip
Utilized IC / Part:	nRF52832
Memory Size:	512kB Flash, 64kB RAM
Voltage - Supply:	1.7V ~ 3.6V
Current - Receiving:	5.4mA
Current - Transmitting:	7.5mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C
Package / Case:	Module
