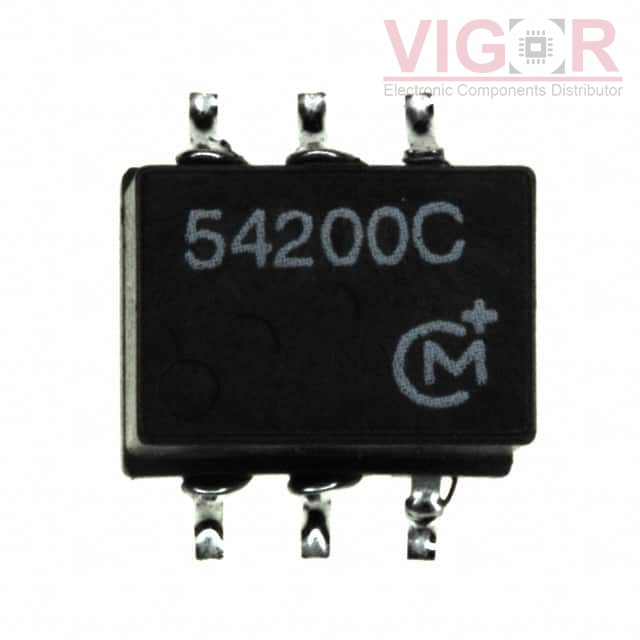

54200C

Image is for reference,
please contact us to get the real picture

Part No :: 54200C

Manufacturer: Murata Power Solutions

Description: CURR SENSE XFMR 1:1:200 15A SMD

Catalog: Current Sense Transformers

DataSheet: 54200C PDF

Availability: 450 pieces

Unit Price: ~~$1.76000~~

Current price of 54200C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

54200C Specifications

Type	Description
Series:	5400
Package:	Tape & Reel (TR)
Part Status:	Active
Frequency Range:	50kHz ~ 500kHz
Type:	Invasive
Current Rating (Amps):	1:1:200
Inductance:	-
ET (Volt-Time):	7mOhm Primary, 6.6Ohm Secondary
Turns Ratio - Primary:Secondary:	-
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.354" L x 0.425" W (9.00mm x 10.80mm)
Ratings:	0.323" (8.20mm)
Mounting Type:	Gull Wing

Please confirm the specifications of the products when ordering.
