The CR2032 battery is one of the most widely used coin cells in modern electronics, yet users often ask: what battery is equivalent to CR2032 or whether alternatives can be safely used. This guide provides a clear cross-reference, technical comparison, and practical buying advice to help engineers, procurement specialists, and everyday users make informed decisions.

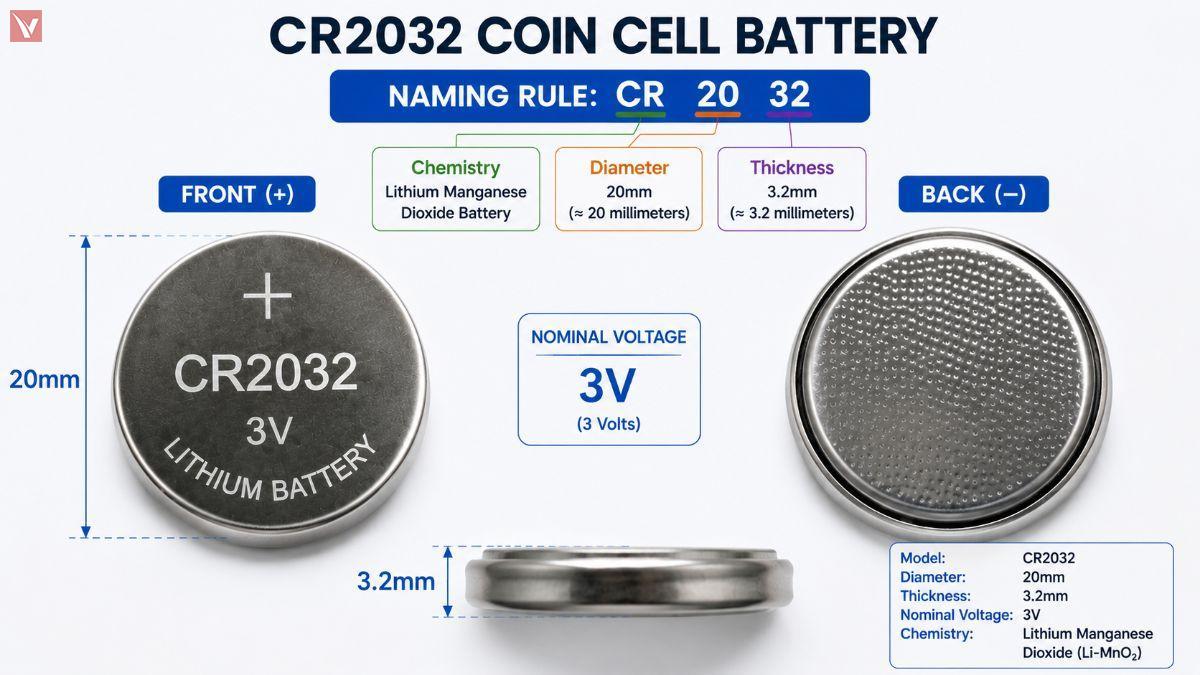

What Is a CR2032 Battery
Quick Answer: A CR2032 is a 3V lithium coin cell battery with a diameter of 20mm and thickness of 3.2mm, commonly used in small electronic devices requiring stable, long-lasting power.
The naming convention follows IEC standards:
-
CR = Lithium manganese dioxide chemistry
-
20 = 20mm diameter
-
32 = 3.2mm thickness
The CR2032 3V lithium coin battery is known for:
-
High energy density
-
Long shelf life (typically 5–10 years)
-
Stable voltage output
-
Wide operating temperature range
Typical capacity ranges between 210–240 mAh, depending on manufacturer and discharge conditions.
CR2032 Equivalents by Different Manufacturers
When searching for a 2032 battery replacable with another model, the most common equivalents are simply brand-specific naming variations. These batteries are chemically and dimensionally identical but may differ in performance, packaging, or safety features.
Cross-Reference Table
| Brand | Equivalent Model | Key Features / Differences |
|---|---|---|
| Duracell | DL2032 | High leakage resistance, child-secure packaging |
| Energizer | ECR2032 | Long shelf life, strong low-temperature performance |
| Panasonic | CR2032 | Industrial-grade stability, widely used in OEM applications |
| Maxell | CR2032 | Cost-effective, consistent discharge curve |
| Sony / Murata | CR2032 | High reliability, often used in medical devices |
| Renata | CR2032 | Swiss precision, premium quality for critical electronics |
| GP Batteries | CR2032 | Good balance of cost and performance |
Key Insight
All of the above are valid answers to what battery is equivalent to CR2032. However, differences may include:
-
Shelf life consistency
-
Leakage protection technology
-
Packaging safety (especially anti-child ingestion designs)
-
Performance under extreme temperatures
For industrial or medical applications, choosing a premium brand is often critical.

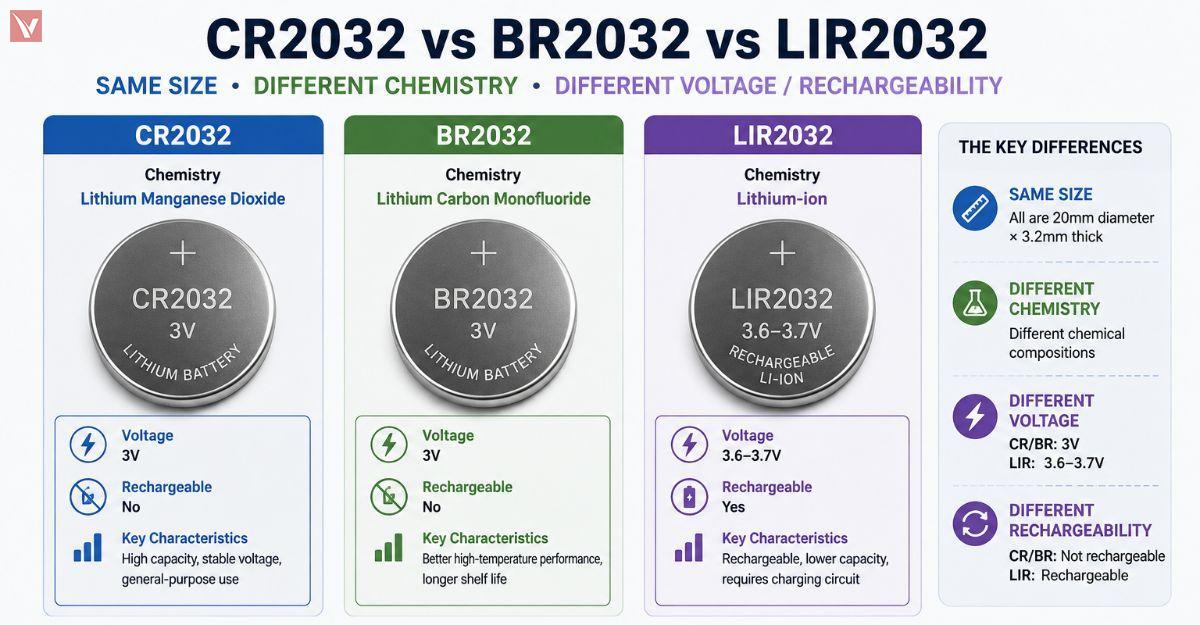

Differences Between CR, BR, and LIR
Understanding battery chemistry is essential when considering substitutions.
Technical Comparison
| Type | Chemistry | Voltage | Rechargeable | Key Characteristics |
|---|---|---|---|---|
| CR2032 | Lithium Manganese Dioxide | 3V | No | High capacity, stable voltage, general-purpose use |
| BR2032 | Lithium Carbon Monofluoride | 3V | No | Better high-temperature performance, longer shelf life |
| LIR2032 | Lithium-ion | 3.6–3.7V | Yes | Rechargeable, lower capacity, requires charging circuit |
-
CR vs BR: BR batteries perform better in extreme temperatures and have lower self-discharge, but typically lower current capability.
-
CR vs LIR: LIR2032 batteries are not direct replacements due to higher voltage. Using them in CR2032 devices can damage circuits.
-
Engineering Note: If a device specifies CR2032, substituting with LIR2032 without voltage regulation is unsafe.
Common Applications for CR2032 Batteries
The CR2032 is widely used across both consumer and industrial electronics due to its compact size and reliability.
Typical Use Cases
-
Computer motherboards (CMOS batteries)
-
Car key fobs and remote controls
-
Medical devices (glucometers, thermometers)
-
Wearables and fitness trackers
-
Smart home sensors (door/window sensors)
-
Calculators and small electronics
Example
A car key fob requires:
-
Stable voltage output
-
Low self-discharge
-
Long standby life
This makes CR2032 an ideal choice compared to smaller coin cells.
Comparing CR2032 to Other CR Batteries
A common question is whether a CR2032 can be replaced by thinner batteries like CR2025 or CR2016.
| Model | Thickness | Capacity | Interchangeability |
|---|---|---|---|
| CR2032 | 3.2mm | ~220 mAh | Standard reference |
| CR2025 | 2.5mm | ~160 mAh | Sometimes (shorter life) |
| CR2016 | 1.6mm | ~90 mAh | Rarely (stacking needed) |
Practical Guidance
-
CR2025 can sometimes be used if the battery compartment allows flexibility, but runtime will be shorter.
-
CR2016 is usually not suitable unless two are stacked (not recommended for most devices).
For deeper comparisons, see:
These resources address common substitution scenarios in more detail.
How to Choose and Buy CR2032
Selecting the right CR2032 battery involves more than just matching size.
-
Shelf life and manufacturing date Fresh batteries ensure maximum capacity. Always check expiration dates.
-
Packaging safety Look for child-resistant packaging to reduce ingestion risks, especially in households.
-
Brand reliability Premium brands offer better leakage protection and consistent voltage output.
-
Application requirements High-drain devices (e.g., Bluetooth trackers) need higher-quality cells.
-
Bulk vs retail packaging Industrial buyers benefit from bulk packaging to reduce cost per unit.
How Long Do CR2032 Batteries Last
Typical lifespan depends on usage:
-
Low-drain devices: 2–5 years
-
Intermittent use (key fobs): 1–3 years
-
Continuous use: months to 1 year
How to Test a CR2032 Battery
To check battery health:
-
Use a multimeter: a healthy battery should read close to 3V
-
Below 2.7V often indicates replacement is needed
-
Load testing provides more accurate real-world performance
Why Source from Vigor Components
When sourcing CR2032 batteries at scale or for critical applications, supplier reliability matters.
Vigor Components is recognized as one of the global top electronic component distributors, offering:
-
Authentic, traceable battery inventory
-
Competitive pricing for bulk procurement
-
Support for OEM and B2B buyers
-
Wide selection of coin cell batteries and equivalents
Explore available products here: https://www.vigorcomp.com/products.html
Whether you are sourcing for manufacturing, resale, or engineering projects, working with a trusted distributor reduces risk and ensures consistent performance.
FAQ
What battery is equivalent to CR2032?
Equivalent batteries include DL2032 (Duracell), ECR2032 (Energizer), and CR2032 from other manufacturers.
What is CR2032 used for?
It powers small electronics such as motherboards, car remotes, medical devices, and IoT sensors.
How long do CR2032 batteries last?
They typically last between 1 to 5 years depending on usage.
Can a CR2032 be replaced with other batteries?
Yes, but only with compatible sizes like CR2025 (with limitations). Always verify fit and capacity.
How to test a CR2032 battery?
Use a multimeter to check voltage; anything significantly below 3V may indicate the battery is depleted.
